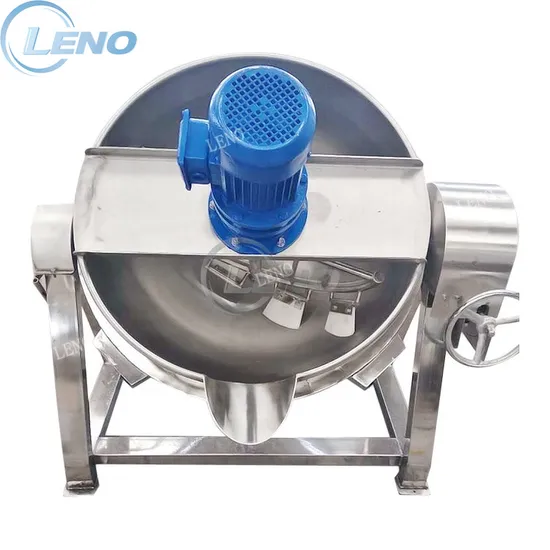

SS304 Electric Heating Jacket Kettle with Agitator
| US$1,000.00-3,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LNT-2001
Application Area
Food
Certification
CE, ISO
Condition
New
Heating Method
Electric Heating
Mixing Drum Shape
Disc
Stirring Type
Scraper
Warranty
1 year
Working
High Speed Mixer
Type
Mixer
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
50L-1000L
Trademark
LENO
Origin
China
HS Code
8479820090
Production Capacity
100 Set/Month
Product Description
| LENO Food grade Stainless steel tilting pot cooking heating mixing industrial cooker jacket kettle | |||
| material | SS304 or SS316L | ||
| Volume | 50L-2T(Customized) | ||
| application | Food, pharmaceutical industry, chemical industry, etc | ||
| Surface | Mirror or matte, Ra<0.4μm | ||
| Structure | Tilting type | ||
| vertical type | |||
| Heating mode | electric heating | gas heating | steam heating |
| Agitator type | Paddle Mixer | ||
| Scraped Wall | |||
| Mixer speed | low speed | ||
| 0-43RPM | |||
| PARTS DETAILS | 1.half-cover | ||
| 2.Various types of CIP cleaners | |||
| 3.Tilting type or vertical type | |||
| 4.Inlet and Outlet sanitary valve. | |||
| 5.Electric box | |||
| 6.Thermometer (According to customer requirements ). | |||
| Technical Parameters | |||||
| Model | Volume(L) | Agitator power(Kw) | Heating area (m2) | Working Pressure in jacket (Mpa) | Agitator speed(Rpm) |
| LNK-50 | 50 | 0.75Kw | 0.2 | ≤0.2MPa (According to customer requirements) | 23 |
| LNK-100 | 100 | 0.75Kw | 0.45 | 23 | |
| LNK-150 | 150 | 1.5Kw | 0.76 | 23 | |
| LNK-200 | 200 | 1.5Kw | 1.0 | 23 | |
| LNK-300 | 300 | 1.5Kw | 1.15 | 23 | |
| LNK-400 | 400 | 2.2Kw | 1.44 | 23 | |
| LNK-500 | 500 | 3.0Kw | 1.9 | 36 | |
| LNK-600 | 600 | 3.0Kw | 2.4 | 36 | |
| LNK-800 | 800 | 3.0Kw | 3.2 | 36 | |
| We can customize the equipment according to customer requirements. | |||||
In the course of heating, stir frying. electric heating cooking pot has the advantages of large heating area, high thermal efficiency, quick heating, short boiling time and heating temperature.
