Qszq-1200 (H450) Small Stone Cutting Machine Bridge Cutter

Product Description

Product Description

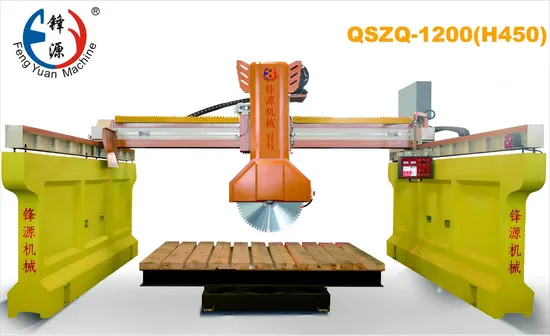

QSZQ-1200 (H450) Curb stone cutting machine
* This stone cutting machine adopts long-span bridge structure.
* The beam and the side beam are sealed by rail oil immersion, and the anti-wear lubricant forms a thin oil film between the rail and the slide block. At the same time, the side beam protective film is provided to reduce the material loss to the extreme.
* The imported inverter used in the cutting system can realize stepless speed regulation cutting.
* Equipped with 360-degree rotating table, flexible rotation, accurate positioning, good rigidity, so that the machine cutting smooth and high processing rate.
* This stone cutting machine is the ideal equipment for processing high value stone, tombstone crafts, and roadside stones.
Product Parameters

Type	Unit		FY-QSZQ-1200	FY-QSZQ-1400
Crossbeam Height	mm		450	450
Blade Diameter	mm		600-1200	800-1400
Movement Stroke	mm		800	800
Working lengtt	mm		2800	3200
Working width	mm		2000	2000
Main motor power	Kw		30	30
Water consumption	m²/h		4	4
Overall dimensions	mm		6000x4700x4200	6000x4700x4200
Total Weight	Kg		6800	7000
Total Weight	Kg		8000	8000
