PVC Powder Mixer Plastic Machine Extruder Machine Plastic Industry Automatic Feeding Dosing Mixing Conveying System Pneumatic Conveying system

Product Description

Application&Features:
For all kinds of plastic powder mixing, drying, coloring and other processes,The unit consists of one hot mixer and one cooling mixer,is the ideal choice for the production of profiles, pipe manufacturers.
1.It is the basic equipment of PVC pipe/profile/board, PVC foam board making machine.
2.All important components(Pan,agitator,distribution box,etc.) are manufactured inside the company to ensure the quality of the machines.
3.The mixer lid is double sealed and opened in the pneumatic way.
4.The abrasion resistant coating of the stirring paddle increases the service life,and runs smoothly throungh the static and dynamic balance test.
5.Barrel wall undergoes precise grinder.
6.Thermo control meters adopt RKC from Japan.
Main Technical Parameters:

Item Model	Total Volume(L)	Effective Volume(L)	Production Capacity kg/h	Rotating Speed(r/min)	Motor Power (kw)	Heat Power/ Cool Medium	Weight(t)
SRL-W 300/600	300/600	225/384	550-600	480/964/70	40/55/11	9kw/water	3.5
SRL-W 500/1000	500/1000	375/660	800-1000	441/886/60	47/67/15	9kw/water	7.8
SRL-W 500/1600	500/1600	375/1024	800-1000	441/886/51	47/67/18.5	9kw/water	8.5
SRL-W 800/2000	800/2000	560/1280	1300-1500	330/660/51	110/18.5	self-friction /water	10
SRL-W 800/2500	800/2500	560/1600	1300-1500	330/660/51	110/22	/	11
SRL-W 1000/3500	1000/3500	750/2240	800-2000	330/660/51	132/37	/	12

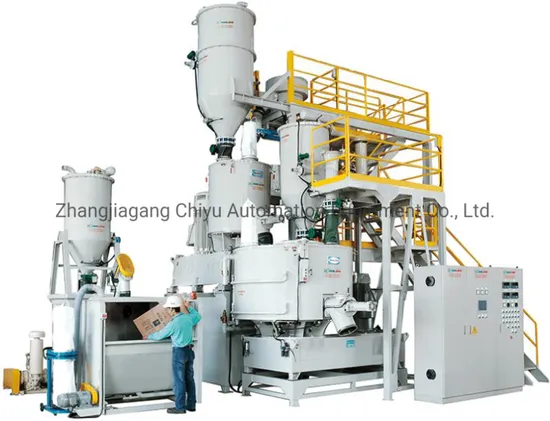

Scene Pictures:
Zhangjiagang City Chiyu Automation Equipment Co., Ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to plastic, chemical and petrochemical industry.
Our long suits are the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening.
Meanwhile, offering optimal solutions and proposals of the whole project . Eventually,
Our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
We provide below machines and plants to domestic and international market:
1.High speed mixer and cooling mixer unit,capacity up to 2000 liters for hot mixer and 6000 liters for cooling mixer.
2. Automatic batch weighing and mixing System
3. High precision additives automatic weighing machine
4. Pneumatic conveying system includes: positive pressure conveying system and vacuum conveying system for powder & pellets.
5. Workshop dust removal and environmental protection equipment, etc.
6.Upgrading and transformation of industrial automation system
Automation of bulk material handling systems
Automation and storage, automation and discharge:
The storage of large bulk solids quantities is realised in silos, big-bags and containers, equipped with automatic discharge aids for a safe extraction of the required product amount from the container. In case of larger capacities the bags emptying is made automatically; at smaller discharge capacities the manual discharge process is usually supported by mechanical devices (like hoists ....).
Automation and conveying:
The application of automation technologies in the field of bulk solids transport - comprising both mechanical systems (screw conveyors, bucket elevators, chain conveyors...) and also pneumatic systems (conveying under overpressure and by vacuum, fluidized bed chutes...) - has a very strong impact on production and productivity. It allows to transport even very large bulk quantities in a reliable and safe manner over great distances without human intervention.
Automation and metering, automation and weighing:
In the field of metering and weighing the automation allows higher metering accuracies and has - besides of an productivity increase - mainly an impact on the product quality. Of great importance are the production records and batch protocols recorded and filed by the recipe management system.
Our aim
Total compliance with the technical demands and operating conditions taking into account operating costs and rates of return and wherever possible reducing investment costs.
