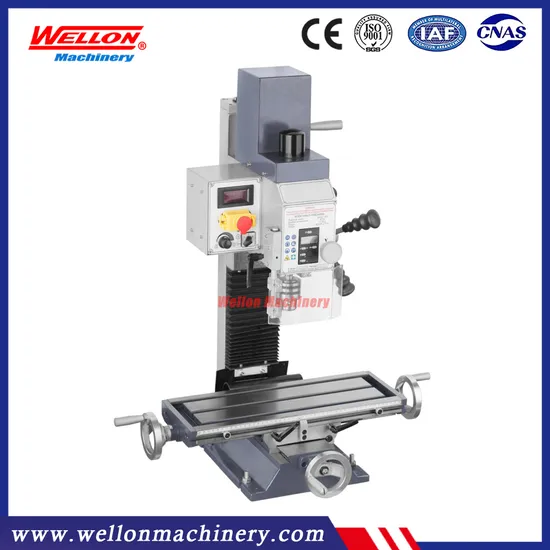

Bench Milling Drilling Machine WMD30V WMD30LV

Product Description

Product Description

Bench Milling Drilling Machine WMD30V WMD30LV

Detailed Photos
Product Parameters

Performence Features:
Simple operation, a wide range of processing.
High-strength cast iron column. Gear box.
Technical parameter:

Specification	WMD30V	WMD30LV
Max.drilling capacity	32mm	32mm
Max.tapping capacity	20mm	20mm
Max.face milling capacity	76mm	76mm
Table size	700X180mm	840X180mm
Spindle taper	MT3/R8	MT3/R8
Spindle stroke	70mm	70mm
T Slot size	12mm	12mm
Spidle speed	Variable	Variable
Range of spindle speed	50-2250mm	50-2250mm
Spindle incline angle	90°	90°
Distance from spindle to column	240mm	240mm
Distance from spindle nose to table	360mm	360mm
Motor	1.1kw	1.1kw
Packing size	710X890X1120	710X890X1120
Weight	220/235kgs	220/235kgs

Standard accessories:
1.Spindle deep ruler
2.Morse taper
3.Draw bar
4.Tool kit
5.Drill chuck with arbor
Optional accessories:
1.Speed display
2.Vice
3.Milling chuck set
4.Keyless chuck
5.58PCS clamping tool kit
