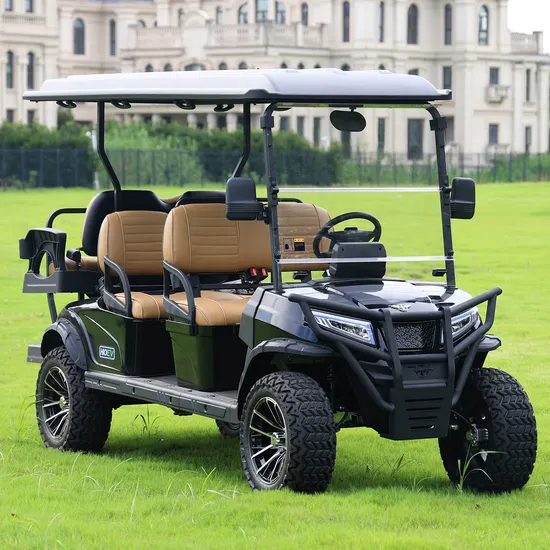

48V 5kw 6 Seats Golf Cart
Basic Info.
Model NO.
A4 PLUS
Power
5kw
Power Fuel
Electric
Maximum Speed
>30 km/h
Gradeability
20-30%
Suitable for
Golf Course
Certification
CE, DOT
Voltage of Battery
48V
Color
Black
Battery
Lithium, Gel, or Deep Cycle Flooded Battery
Motor
AC 5kw
Controller
400A
Range
80-100 Km
Turning Radius
4000 mm
Transport Package
Knocked-Down or Completely Built-up
Specification
3500*1190*1900mm
Trademark
HIOEV
Origin
China
HS Code
8703101900
Production Capacity
30000 Pieces/Year
Packaging & Delivery
Package Size
350.00cm * 119.00cm * 190.00cm
Package Gross Weight
510.000kg
Product Description
Detailed Photos Product Parameters| Model | A4 Standard | A4+CSA | A4 PLUS | |||||||||
| Load/dimensions | ||||||||||||
| Rated load | 370 kg | 500 kg | 540 kg | |||||||||
| Vehicle weight (lead-acid battery) | 580 kg | 600 kg | 610 kg | |||||||||
| Vehicle weight (lithium battery) | 448 kg | 468 kg | 478 kg | |||||||||
| Total length | 3190 mm | 3740 mm | 3500 mm | |||||||||
| Total width | 1190 mm | 1190 mm | 1190 mm | |||||||||
| Total height | 1900 mm | 1900 mm | 1900 mm | |||||||||
| Number of passengers | 4 people | 4 people | 6 people | |||||||||
| Minimum ground clearance | 120 mm | 120 mm | 120 mm | |||||||||
| Wheelbase | 2453 mm | 2453 mm | 2453 mm | |||||||||
| Front/rear wheel track | 880 mm/ 970 mm | 880 mm/ 970 mm | 880 mm/ 970 mm | |||||||||
| Tires | 18x8.5-8 (6-ply rated high-quality tire) | 18x8.5-8 (6-ply rated high-quality tire) | 18x8.5-8 (6-ply rated high-quality tire) | |||||||||
| Power system | ||||||||||||
| Voltage | Motor | Controller | Battery | Charger | ||||||||
| 48V | 5KW | HIO | 6 PCS 8V deep cycle lead-acid batteries/ 105-160Ah lithium battery | HIO onboard charger | ||||||||
| Vehicle performance | ||||||||||||
| Speed range | Range | Turning radius | Steering system | Front suspension | Rear suspension | Braking distance | ||||||
| 8-30km Vehicle color | 80-100km (no load) | 4000mm | Bidirectional push pinion and rack | MacPherson independent suspension | Variable cross-section leaf springs and ≤3400mm | |||||||
| Standard body color | Black, white, ivory, turquoise, wormwood green, forest green, sky blue, electric blue, orange, Dior red | |||||||||||
| Standard seat color Vehicle configuration | Beige | |||||||||||
| Standard configuration | 48V-AC system Using HIO independently developed onboard charger AC 5KW motor | |||||||||||
Optional configuration | Optional battery (lead-acid battery, lithium battery) Optional speed meter Optional electromagnetic parking brake Optional luxury seats and luxury steering wheel Optional LCD screen | Optional aluminum alloy wheels (8 inches, 10 inches, 12 inches) Wireless charger Optional light kit(turn signals, headlights, driving lights) Vehicle start-stop system Front basket | ||||||||||
Certifications
Exhibition
Packaging & Shipping
FAQ Q1. What is your terms of payment?A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.Q2. What is your terms of delivery?A: FOB, CIF, EXW, CFR, DDP.Q3. How about your delivery time?A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. There may be a mold fee.Q5. What is your MOQ?A: We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.Q6. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ7. Do you provide OEM service?A:Yes, we do provide OEM service. However, we will require minimum 500 units vehicles yearly for OEM project.Q8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
