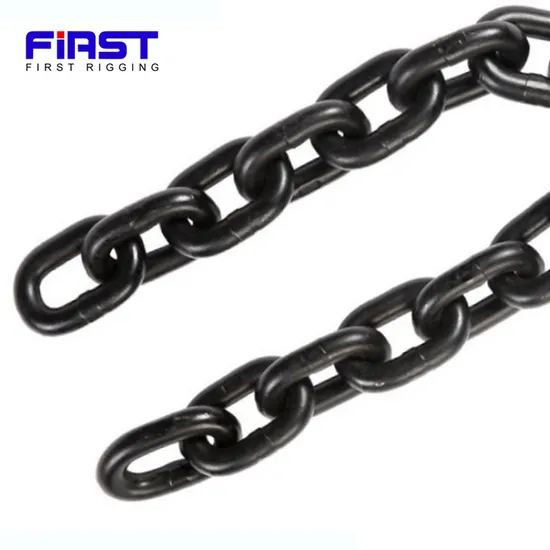

20mn Material Black Anchor Chan for Ship

Product Description

Product description Anchor chain
our product:
Material: 20Mn CM490 30Mn2
Surface treatment: black paint hot galvanized
Anchor chain cable connecting anchor and the hull of the ship, which is used to transmit and buffer the external force on the ship it also creates some friction.
Anchor chain type
A. according to the make methord : cast steel anchor chain, welding anchor chain and forging anchor chain.
B. according to the link structure:A anchor chain and B anchor chain.
C.according to the purpose: ship anchor chain and oean mooring chain.
D.according to the steel type: ship anchor chain AM1, AM2, AM3. Oean mooring anchor chain R3, R3S, R4, R4S,R5.

Anchor chain specifications:

Diameter		Chain link size		AM1		AM2		AM3		Approx weight
		Outside length	Outside width	proof load	breaking load	proof load	Breaking load	Proof load	Breaking load	total length(27.5m)
Inch	MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98.00
9/16	14	84	50.4	58	82	82	116	116	165	119.00
5/8	16	96	57.6	76	107	107	150	150	216	156.00
11/16	17.5	105	63	89	127	127	179	179	256	186.00
3/4	19	114	68.4	105	150	150	211	211	301	230.00
13/16	20.5	123	73.8	123	175	175	244	244	349	260.00
7/8	22	132	79.2	140	200	200	280	280	401	300.00
15/16	24	144	86.4	167	237	237	332	332	476	370.00.
1-1/16	26	156	93.6	194	278	278	389	389	556	431.00
1-1/8	28	168	100.8	225	321	321	449	449	642	496.00
1-3/16	30	180	108	257	368	368	514	514	735	564.00
1-1/4	32	192	115.2	291	417	417	583	583	833	635.00
1-5/16	34	204	122.4	328	468	468	655	655	937	712.00
1-7/16	36	216	129.6	366	523	523	732	732	1050	800.00
1-1/2	38	228	136.8	406	581	581	812	812	1160	887.00
1-9/16	40	240	144	448	640	640	896	896	1280	1032.00
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084.00
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197.00
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310.00
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438.00
2	50	300	180	686	981	981	1370	1370	1960	1546.00
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661.00
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791.00
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926.00
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086.00
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249.00
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361.00
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516.00
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676.00
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885.00
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010.00

Factory production picture:
Our customer:
Our products are sold a lots of counties, we can provide the high quality products for our cilent, we continue innovate manufacturing process, always provide customers wiht high products,we hope to cooperation with cilent around the word ,create tomorrow.
Product packaging:
Wire rope bundling.
Our advantages:
1. First-class equipment, good quality control, advanced technology.
2. 24 years of rich experience in production and trade.
3. Our production have gained the ISO9001,CE,BV certificates etc. Our production had been comprehensive around the world and they are being exported and they are being exported to Canada, USA, Korea, Germany, India, Dubai and many other countries.
4,So far, the company built the largest scale manufacturing base for rigging hardware in weifang, China.
Our factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.
Customer visiting
FAQ.
1. Where is your factory located?
In Changle, near Qingdao city, about 2 hours by car.Welcome to Visit.
2. What products do you supply?
1)Lifting chain, Mining chain
2)Master link
3. How do I pay?
TT(Telegraphic Transfer),30% payment in advance, 70% balance before shippment .
4. How do I receive the goods?
FOB, C&F, CIF are most commonly used trade terms.
