Lab Nhz-1L 1liter Silicone Rubber Vacuum Kneader
| US$12,000.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
NHZ-1L
Application Area
Chemical
Certification
ISO
Condition
New
Mixing Drum Shape
Double Cone
Stirring Type
Spiral
Working
Shear Mixer
Mixer Type
Double Screw Cone Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
ISO
Trademark
GMK
Origin
Foshan, Guangdong
Production Capacity
120unit/Season
Product Description

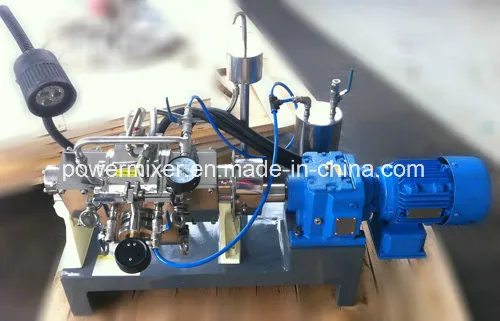

Lab 1liter silicone rubber vacuum kneader SpecificationsG.M.K kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity material.
NHZ series kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials. Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.
Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.
Discharge modes include hydraulic tank turning discharge, screw discharge, bottom discharge and so on. Tank cover open and close are operated by hydraulic. Feeding and discharge are very convenient.
The shaft sealing adopts unique vacuum box balance structure (National patent No. ZL200420087991.3), which is particularly useful in improving system vacuum degree and material purity.
Kneader is comprised of 6 parts of kneading, chassis, transmission system, vacuum system, hydraulic system, electric control system, etc. Kneading part is comprised of tank, stirrers, wallboard and tank cover. Stainless steel is used for parts contacting materials.
Available capacity: 1L, 2L, 5L, 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 6000L
Discharge mode: tank turning
| MODEL | NOMINAL CAPACITY | VACUUM DEGREE | DISCHARGE MODE | HEATING/COOLING MODE |
| NHZ-1L | 1L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-2L | 2L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-5L | 5L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-10L | 10L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-50L | 50L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-100L | 000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-200L | 200L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-300L | 300L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-500L | 500L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-1000L | 1000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-2000L | 2000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-3000L | 3000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
