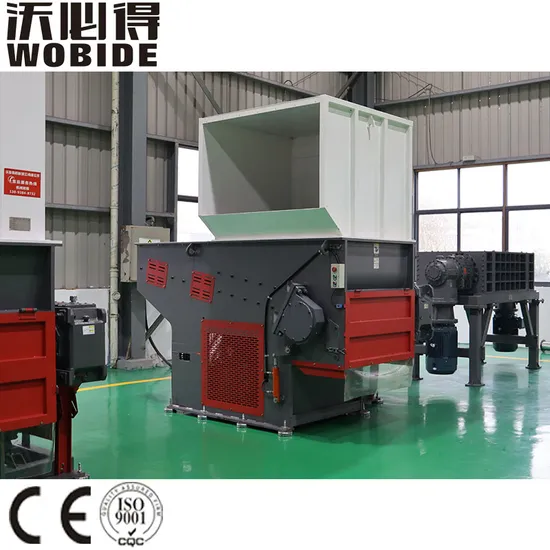

Waste Paper /Carbon Single Shaft Shredder
| US$13,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WPS1000
Material Processed
Plastic Lump
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Main Shaft Length(mm)
1000
Main Shaft Tactical Diameter(mm)
450
Main Shaft Speed(Rpm)
78
RAM Travel(mm)
1000
Rotor Blades(PCS)
63
Fixed Blades(PCS)
3
Motor Power(Kw)
55/75
Hydraulic Power(Kw)
5.5
Screen Mesh Diameter(mm)
30-120
Cutting Chamber Dimension(mm)
1000*1000
Overall Dimension(L*W*H)(mm)
2950*2000*2850
Weight(Kg)
7000
Transport Package
Film
Specification
high efficient, low noise
Trademark
WOBIDE
Origin
Zhejiang, Taizhou
Production Capacity
500PCS/Year
Product Description
Product Description| Model | WPS1000 |
| Main Shaft Length(mm) | 1000 |
| Tactical Diameter(mm) | 450 |
| Main Shaft Speed(rpm) | 78 |
| Ram Travel(mm) | 1000 |
| Rotor Blades(pcs) | 63/92 |
| Fixed Blades(pcs) | 3 |
| Motor Power(kw) | 55/75 |
| Hydraulic Power(kw) | 4 |
| Screen Mesh Diameter(mm) | 30-120 |
| Cutting Chamber Dimension(mm) | 1000*1000 |
| Overall Dimension(mm) | 2880*2180*2570 |
| Weight(kg) | 7000 |
Detailed Photos
Application
Application: Pieces from injection molding machine
Thick wall plastic sheet
Pipe
Hollow plastic products
Chemical blue barrel
Plastic pallet
Film
Wood
Kitchen and household waste
Shredder Product Series
| Model | WPS600 | WPS800 | WPS1000 | WPS1200 | WPS1600 |
| Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1600 |
| Tactical Diameter(mm) | 280 | 400 | 450 | 450 | 645 |
| Main Shaft Speed(rpm) | 78 | 78 | 78 | 78 | 78 |
| Ram Travel(mm) | 600 | 800 | 1000 | 1200 | 1600 |
| Rotor Blades(pcs) | 39 | 51/57 | 63/92 | 81/116 | 140/156 |
| Fixed Blades(pcs) | 2 | 2 | 3 | 4 | 5 |
| Motor Power(kw) | 22 | 37 | 55/75 | 75/90 | 75*2 |
| Hydraulic Power(kw) | 2 | 3 | 4 | 4 | 5 |
| Screen Mesh Diameter(mm) | 30-80 | 30-80 | 30-120 | 30-120 | 30-120 |
| Cutting Chamber Dimension(mm) | 600*600 | 800*800 | 1000*1000 | 1200*1250 | 1600*1400 |
| Overall Dimension(mm) | 1750*1400*1780 | 2430*1720*2480 | 2880*2180*2570 | 3350*2300*2660 | 3800*3300*3250 |
| Weight(kg) | 2800 | 5000 | 7000 | 8000 | 11500 |
More Products
Company Profile
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
