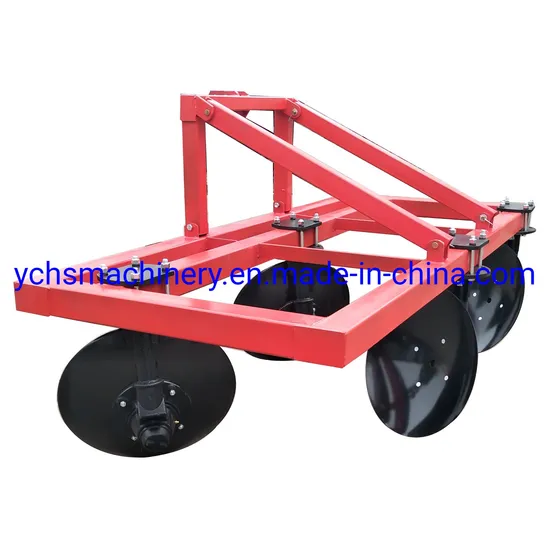

Farm Disc Ridger/Ridger Plough/Ridger Cultivator

Product Description

3Z series of disc ridger is suitable for ridging after the tillage in the farm field.it 3Z consists of heavy duty tubular
box frame, 3 point hitch system and discts.he disc blades are made after the heat treatment in the material of 65
Mn spring steel that has better hardness. The machine is reasonablefor construction,conveniently to transport,
easy to adjust, and conveniently to use and maintain.
Technical Specification
• The disc blades are made after the heat treatment in the material of 65Mn spring steel.
•There two series of this disc ridger. Two discs and four discs respectively. You can choose the nos of disc to
meet your need.
Main Specifications

Model	3Z-120	3Z-140	3Z-180	3Z-260
Name	single/double rows ridger	Single-row ridger	single/double rows ridger	single/double rows ridger
Working width (mm)	1200	1400	1800	2600
Ridging width (mm)	200-450	300-1000	200-450	300-600
Ridging height (mm)	150-240	150-330	150-260	150-240
Dia. of disc (mm)	460	710	560	660
Nos. of disc	4	2	4	4
Matched power (hp)	25-70	50-80	55-80	80
Overall dimension (L*W*H) (mm)	900*1700*1200	950*1900*1410	950*2050*1300	1350*2700*1420
weight (kg)	180	200	220	450

Products Show
FAQ

Q1: Are you a factory or trading company?

We are a factory with self-supported import and export right.

Q2: How can I trust on your company?

We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.

Q3: Where is your factory located? How can I visit there?

Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!

Q4: How can I place an order from your website?

It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.

Q5: How can I make the payment?

Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice. 30% as prepayment and the balance when the goods are ready for shipping. Irrevocable L/C at sight could be also accepted.

Q6: What's the Payment terms?

FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.

Q7: At which port do you usually ship the good?

We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.

Q8. How about the Warranty ?

12 months warranty from the time of the goods arrive at destination.

Our Services
•Professional Sale Team to help you in whole purchase process, help you solve the language communication problems, help you finish the procedure of booking the ship, delivery, clean the customs.
•Perfect after-sale Constitution to solve each items after sale to meet the need from customers.
•Keep the Good quality and On-time Delivery.
