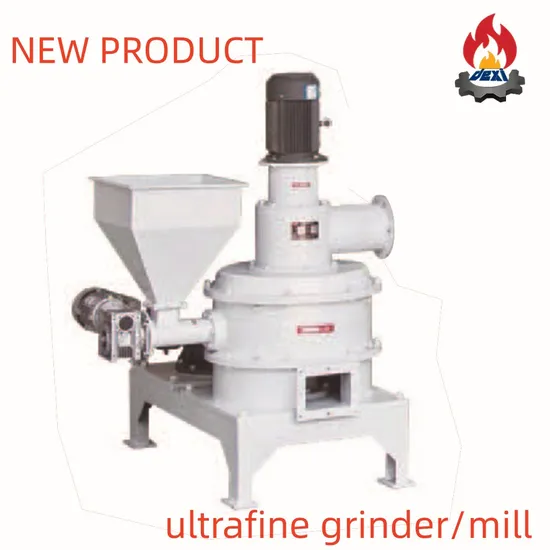

15/18.5 Kw Pulverizer Superfine Powder Machine/Ultrafine Pulverizer

Product Description

Product Description15/18.5 KW Pulverizer Superfine Powder Machine/Ultrafine Pulverizer
1. CWF series powder grinder machine is compact in design, reasonable in structure, and has air-selected type, no screen and no net. The machine is equipped with grading mechanism, which can make the crushing and grading complete at one time. Negative pressure conveying makes the heat generated during crushing continuously discharged, so it is also suitable for the crushing of heat sensitive materials.
2. CWF series powder grinder machine is mainly using for crushing different kind of grain, biomass and chemical materials into fine powder, output size can be 60 mesh to 2000 mesh. It is ideal equipment for crushing pesticides, chemical industry, animal feeding industry, pharmaceuticals industry and other industries.
Working Principle
Through screw conveyor, feeding the materials into the grinding chamber, the material will been cut and crushed by high-speed rotating hammers.
After grinding, the fine material is transported into cyclone separator by negative pressure air transportation, and the fine material will been discharge from cyclone bottom airlock. And some very light dusting will go into the behind pulse dust filter, then clean air come out, roughly no material lost. Product Parameters

Model	Power (KW)	Capacity (kgs/hour)	Product size (Mesh)	Grinding ratio	Disc diameter (mm)	Machine Dimension (mm)
CWF30	15/18.5	40-300	60-2000	≥95%	300	4500x1600x2600
CWF40	30/37	80-1000	60-2000	≥95%	400	5500x2000x3900
CWF50	37/45	200-2000	60-2000	≥95%	500	5600x2000x3900
CWF75	75/90	360-3000	60-2000	≥95%	750	7000x2500x4200
CWF90	90/110	500-5000	60-2000	≥95%	900	8300x3500x4000
CWF110	110/132	1000-6000	60-2000	≥95%	110	1000x4000x5200
CWF130	132/160	1800-10000	60-2000	≥95%	130	11000x4000x5200
CWF150	160/200	2500-18000	60-2000	≥95%	150	12500x6500x6500
CWF170	220/250	3500-20000	60-200	≥95%	170	14000x7500x7500

OUR SERVICEPre-sale service
1. Our professional and experienced team helps every client to find his most suitable biomass wood pellet machine and chose the correct chipper, crusher, dryer and other machines for a complete biofuel pellet production plant line.
2. Any kind of legal logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will arrange production immediately based on customer's demand.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video to you for confirmation.
4. Help you arrange shipment booking, machine delivery and help you for your importing documents.
After-sale service
1. 24hours on-line serivce, guide you doing installation and starting using for the purchased machines.
2. Video communication guide your local worker doing installation and commissioning, and normal maintenance.
2. We also can send engineers to customer's factory doing the guide installation for biomass pellet machine line and other big machines.
Related Hot Products

Product picture	Product line
	https://deximachine.en.made-in-china.com/product/UEeRPfBXOtrN/China-Environmental-Woodworking-Machinery-Feeding-Diameter-Wood-Chipper-Drum-Chipper-Machine.html
	https://deximachine.en.made-in-china.com/product/OxzrPHtbuaRU/China-Farm-Machinery-Poultry-Feed-Mill-Machinery-Corn-Grass-Hammer-Mill.html
	https://deximachine.en.made-in-china.com/product/fnpYCQdvsArM/China-Sg65X75-Small-Grain-Mill-Grinder-Grain-Hammer-Mill.html

Detailed Photos
Product Features
Feed port
This is made of stainless steel, wear-resistant, long service life, less capital investment, clean and hygienic
Grinding, fan, grading, and material inlet and outlet are controlled by buttons respectively, and the operation is simple and easy to useCrushing plant
The material enters the grinding chamber by the door screw conveyor, and is cut and crushed by the high-speed rotating blade. The material is transported to the cyclone separator by the negative pressure air transport method
Pulse Device
Through the pulse vibration, the powder on the cloth bag is separated from the cloth bag, which reduces the waste of raw materials
NOTE:
1.Combined with different raw materials, customize machines of different materials, such as all-steel material; all-stainless steel material.2.Stainless steel suitable for food grade work.
Made of iron material Made of stainless steel material
Core components1.Internal structure of the machine, spare parts require industrial grade 304 stainless steel, heat treated parts, finishing parts.2.Wide range of applications.3.Long working life.Advantages
1. GMP and food grade design pulverization.2. Negative pressure working condition can prevent dust and be suitable for heat sensitive material.3. Output size is adjustable via air classifier.4. Feeding rate is automatic controlled.
Product application1.Some other grinding machine for salt, sugar, pepper,coffee or product of food, flavoring,pharma, etc are supplied to, pls contact us for more details.2.Traditional Chinese medicine, roots, stems, corn, rice, pepper, pepper, oil and wheat, soybean, soybean meal, garlic,star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, sugar, saccharin, food, shrimp, pumpkin powder, seasoning.Company Profile
