Sheet Metal Press Brake Iron Bending Machine for Kitchenware

Sheet Metal Press Brake Iron Bending Machine for Kitchenware

US$50,000.00-55,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LHA-1000X
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Panel Bender
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Panel Bender
Max.Bending Size
1000mm*1000mm
Feeding Structure
Suction Cup
Max. Bending Thickness
2mm
System Minimum Accuracy
0.001mm
Four Side Forming Min. Inner Size
About 140mm*210mm
Minimum Bending Thickness
0.35mm
Core Components
Bearing,Servo Motor,Screw Rod,Line Rail
Specification
1000X
Trademark
LANHAO
Origin
China
HS Code
8462230000

Product Description

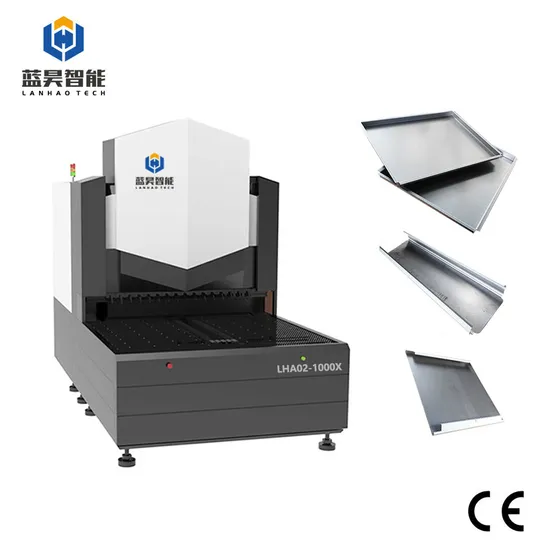

LHA02-X series intelligent panel bender adopts suction cup loading method. The whole machine is designed and produced in accordance with high-precision machine tool standards. Used on smooth panel surface, no punching, no holes, which benefits suction cup to adsorb. The equipment has been iteratively upgraded in multiple versions, stable and reliable, supporting long-term operation,which greatly improves the production efficiency of bending enterprise. Product Parameters
LHA-1000X-02 Technical parameters
Loading method Suction cup
Worktable structure Brush
Max. bending speed 0.2 second/time
Max.bending width 1000mm
Max.Bending size L1000mm W1000mm
Max. Bending height 170mm
Rated voltage 380V
Total power 25KW
Average power About 1.1KW
Noise decibels About 50 db
Machine size L285cm W150cm H280cm
Total weight 7 tons
User operating environment Win7 or above operating system
Max. Bending thickness UTS 520N/mm2 304 stainless steel 1.0mm
UTS 410N/mm2 cold plate 1.2mm
UTS 265N/mm2 aluminium plate 1.6mm
Min. Panel thickness 0.35mm
Four sides forming, min. Inner size 140mmx210mm
Double sides forming, min. Inner size 140mm
Axis Standard synchronized 9 axis
