Factory Supply Broiler Poultry Farm Equipment Chicken Feeding Line Equipment

Product Description

I.Production Description:
Factory Supply Broiler Poultry Farm Equipment Chicken Feeding Line Equipment Product details
Our automatic poultry farm equipment consists of:
1. Main feed delivery line
(1. )Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor.
(2) Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

Manpower hopper or silo	600/800kg hopper, 5/8/10/15/18/20mt silo
Motor	Taiwan brand Power: 0.75Kw/1.1Kw Voltage: 380V, three-phase/220V, single-phase/others
Main feed line	Diameter of pipe: 75mm Material: PVC
Auger	Origin: South Africa Feeding ability: 1400Kg/h (maximum)
Sensor	Origin: Germany

Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.
*If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house, we suggest you use hopper instead of silo.

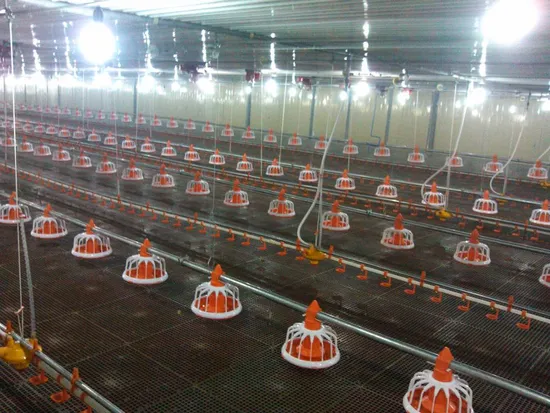

2. Automatic pan feeding line system

V-shape bin (with hopper)	Bin volume: 100L Material: Hot-DIP galvanized sheet
Motor	Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw Voltage: 380V, three-phase/220V, single-phase/others
Delivery pipe	Diameter of pipe: 45mm Material: Hot-DIP galvanized steel
Auger	Origin: South Africa Feeding ability: 450Kg/h (maximum)
Feed pan	Pan distance: 4 pans/3m, 3 pans/3m Raising ability: 45-55 birds/PC Material: Pure engineering plastic
Sensor	Origin: Germany
Suspension &lifting device	We can adjust the feeding line by winch.
Anti-perching device	It prevents birds staying on the feeding line for too long.

*There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.
The motor will start working and deliver feed when the feed pan (with sensor)
Lacks feed and will stop working when the feed pan (with sensor) is full of feed.
3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
4. Automatic ventilation fan system

Specifications	50'' box fan	36'' box fan
Flow amount (m3/h)	41000	20800
Size (L*W*H) (mm)	1380*1380*450	1000*1000*450
Noise level	≤65dB	≤64dB
Power	1.1Kw	0.4Kw
Voltage	380V/220V/others	380V/220V/others
Current	2.8A	1.6A
Weight	88Kg	66Kg

*The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.
*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.
*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you
Might need curtain system.
5. Cooling pad system: Thickness: 100mm; 150mm Width: 600mm Height(with frame): 1660mm; 1960mm; 2160mm Frame: Galvanized sheet/Aluminium alloy *When the air goes through the pad, the heat will be took down by the evaporation of water, so The air will be cooled before going into the chicken farm.
6. Environment control system *The system saves labor and resources under the condition of assuring the optimum growth environment of chickens. *It is imported from Israel can set an optimum working mode according to the local climate And raising environment. 7. Spraying and disinfecting system
*It's effective tool for cooling, damping, dedusting and disinfecting the house. (the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)

8. Heating system(heater):
*Proper temperature is critical to chickens, especially day-old chicks, we have different kinds,
They fire coal, diesel, gas or use electricity, 4 kinds for your option.
9. Curtain system: *In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm), They will use big fan accordingly. *Our curtain have two kinds for your choice, manual operated one and motorized one.

Detailed description of Steel structure Chicken house
Dimension	Length	customer designed
	Width	customer designed
	Height	customer designed
Weather condition	Wind speed	m/s or km/h
	Snow load	kg/m2
	Earthquake	degree
Life span	25-50 years
Steel Frame	Main Frame	Q345B & Q235
	Secondary Frame	Q235 C or Z section Purlin, Round Bar
	Bracing	Angle brace, Welded Pipe
Maintenance Frame	Wall & Roof cladding	Single color corrugated steel sheet
		EPS, Glass wool, Rockwool, PU, etc sandwich panel
		Steel sheet THK. :0.3-0.7mm
		Heat Insulation THK.:50-150mm
Surface	Panited surface	Antirust paint,total thickness: 100-120um; Warranty period: 18-20 years
	Hot dip galvanized surface	65,86um; Warranty period: 45-50 years
Accessories	Door	Sliding door;PVC door
	Drainage system
Equipment	Feeding system	Feeder motor connect with feeder hopper
	Nipple drinker system
	Tunnel ventilation and heating system
	Curtain system: automatic curtain machine
	Suspension system with ceiling winch
	Ventilation: external damper fan with cone
Delivery time	20-25days
Shipment	steel frame is packed in 40'OT container, Maintenance frame and others are packed in 40'GP or 40'HQ

Construction design steel structure prefabricated warehouse features and benefits:
Light weight, industrialized manufcture
High strength, wide span and corrosion resistance.
Highly secure and reliable.
fast installation, shorter construction time
Low cost, easy and fast to build.
Resistant to 8-9 earthquake grades.
Span life: Up to 50 years.The steel structure materials can be recycled, thanks to this the building is environmental friendly.
Our service
-We reply each inquiry within 24 hours
- develop and make new parts according to customers' requirements and detailed information.
- customize buildings for specific applications.
- provide service of designing, engineering, manufacturing and installation.
- our expert technicians can help you to assemble the project at site.
-We have more than 18 years designing experience and producing top quality products at affortable prices.
Please let know if you have any need for our product.
--
