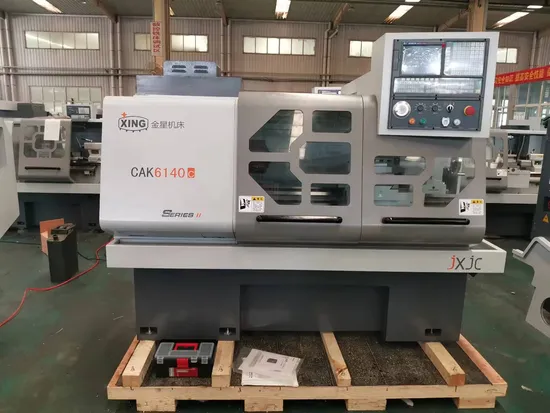

High Precision Flat Bed CNC Lathe 1.5m
| US$16,570.00-16,700.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CAK6150*1500MM
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Distance Between Centers
1500mm
Spindle Bore
82mm
Power of Motor
7.5kw
Transport Package
Veneer Box
Specification
6150*1500mm
Trademark
xing
Origin
Linyi, Shandong, China
HS Code
84581100
Production Capacity
1000 Sets
Product Description
Main feature
The guideways are hardened and precision ground·Infinitely variable speed +3-grade gear(manual) of spindle·The system is high in rigidity and accuracy·The machine can smoothly run with low noise·Design of electromechanical integration, easy operation and maintenance
Standard configuration:
GSK system,3-jaw chuck,lighting & cooling systems,spindle&
bedway lubrication system, 4-position electric toolpost
Special configuration:
lathe tool,gang tool holder,live center,stedy rest, follow rest, pad iron
| Parameter | |
| SPECIFICATIONS | CAK6150 |
| Swing diameter over bed | ф500mm |
| Swing diameter over table | ф290mm |
| Distance between centers | 1500mm |
| Spindle taper | MT5 |
| Spindle nose | A2-8 |
| Spindle speed | 50~1600/3 r/min |
| Spindle bore | ф82 |
| Chuck size | 250mm |
| Longitudinal stroke | 1440mm |
| Cross stroke | 295mm |
| Turing tool size | 25×25mm |
| Tailstock stroke | 128mm |
| Tailstock taper | MT5 |
| Rapid feed | X:6 m/min Z:6 m/min |
| Min. setting unit | 0.001mm |
| Repositioning accuracy | X:0.012mm Z:0.016mm |
| Circle/cylinder | 0.005,0.03/300mm |
| Torque of feed motor | X:6N.m Z:7.5N.m |
| Power of motor | 7.5kW |
| CNC system | Siemens 808D |
| N.W/G.W | 2800/3000kg |
| Overall dimensions | 2850×1300×1880mm |
| Package | Veneer box |
Qty. | One unit |
| Delivery Port | Qingdao |
| Delivery time | about 40 days |
| Terms of Payment | T/T (50% in advance and delivery on 100%) |
| Warranty Period | One Year |
