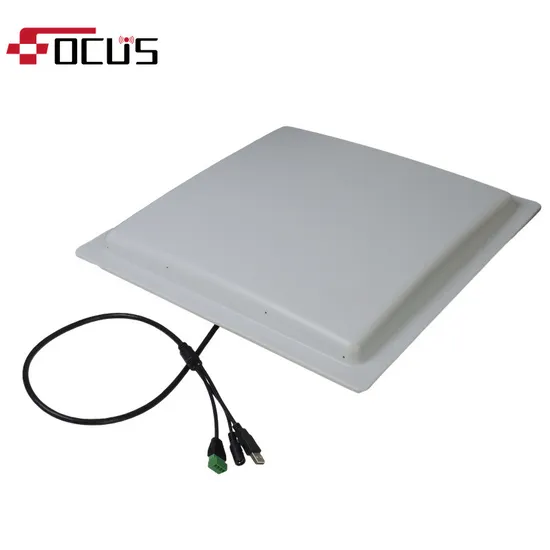

CE FCC UHF Long Range RFID Reader RFID Antenna 20m Parking System Wg26 TCP/IP Free Software
| US$300.00-380.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ST-F91E
Interface
Serial Port, Wiegand26, TCP/IP
Reading Distance
>10m
Application
Parking, Hospital, Company, Bank, Store
Protocol
ISO18000-6b/6c(EPC C1g2)
Power Supply
DC 9V
Communication
RS232, RS485, Wiegand26, TCP/IP/WiFi
Frequency
865~868MHz, 902~928MHz (EU&Us )
RF Power
30 dBm Adjustable
Transport Package
Package Size: 60*50*12cm
Specification
size: 445mmx445mmx55mm
Trademark
Focus RFID
Origin
Shenzhen
HS Code
8471900090
Production Capacity
10, 000, 000 PCS/Year
Product Description
Main Features Automatic scan Com Port/Network Support firmware upgrade Support Export Config/Import Config Multiple country languages Global frequency(860~960MHz) Password mode Read specify tag Relay Data cache Multiple customized communication protocols Remote listening RSSI
Technical Parameter
| Model & Interface | ST-F91G,RS232.WG26.Relay ST-F92G,RS232.WG26.Relay ,TCP/IP (RJ45) ST-F93G.RS232.WG26.Relay ,POE ST-F94G,RS232.WG26.Relay ,WIFI ST-F95G,RS232.WG26.Relay ,WIFI,POE |
| Engine | Designed by senior imported chip solution (compatible with Impinj R2000) |
| Frequency | 865-868MHz(EU),902-928MHz(US) |
| Protocol | ISO18000-6B/6C(EPC GEN2) |
| Built in antenna | 9dbi antenna |
| Work mode | Active mode Answer mode Password mode Trigger mode |
| Special Functions | Support firmware/hardware upgrade online Support multiple development languages(customized) Support relay +password trigger relay work Support data caching when network disconnect Support RSSI |
| RF power | 30dbm(adjustable) |
| Reading distance | 10~15 meter (depends on tag) |
| Communication interface | Standard:RS232.WG26.Relay Optional:TCP/IP(RJ45),POE,WIFI |
| Power supply | 12V 2A (Max 24V) |
| Working temperature | -10~+55ºC |
| Storgate temperature | -20~+75ºC |
| Reader size | 305*305*60mm |
| Net weight | 3Kg |
| Package Size | 430*370*150mm |
| Gross weight | 5kg |
