Xushen ZT5 Tank Pipe Self-Adjusting Welding Rotator with Capacities 5 Tons

Product Description

Xushen ZT5 Tank Pipe Self-Adjusting Welding Rotator with Capacities 5 Tons
Our self-aligning welding rotator is developed by incorporating the advantages of similar products both domestically and internationally, while considering the usage requirements of several boiler and pressure vessel manufacturing plants. It is widely used for welding metal cylinders and is a specialized equipment required for the manufacturing of boilers, pressure vessels, and more. The self-aligning welding rotator features advanced technology, reliable quality, and easy operation.

Product Name	Xushen ZT5 Tank Pipe Self-Adjusting Welding Rotator with Capacities 5 Tons
Specification	ZT5
Load Capacity(T)	5 Ton
Center Distance(mm)	1030
Roller Diameter (mm)	250
Roller Width (mm)	120
Workpiece Diameter (mm)	300-2500
Roller material	Polyurethane
Roller speed	100-1000(mm/min)
Speed control method	Variable frequency stepless speed control

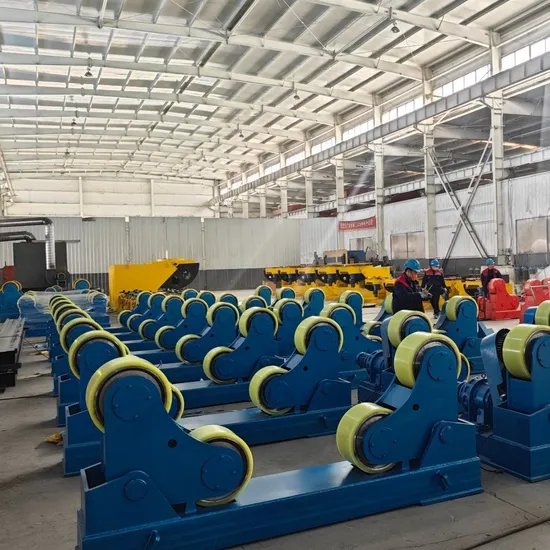

The standard self-aligning welding rotator consists of an active frame and a passive frame, and can also be customized with one active frame and multiple passive frames, providing ease of use and strong adaptability.
The adoption of AC frequency converter allows for stepless speed control, providing high starting torque, a wide speed range, stable operation, and multiple protection functions such as overvoltage, overcurrent, overload, and overheating.
The roller group's inclination angle can be automatically adjusted according to the diameter of the workpiece, eliminating the need for manual adjustment.
All four wheels of the active frame adopt gear meshing transmission, enabling four-wheel drive.
The polyurethane-coated wheels have high friction, long lifespan, and strong load-bearing capacity.
The start, stop, forward, reverse, and speed adjustment of the active roller frame are operated on the remote control box.
There is an interface for linkage control, enabling integration with operating machines for welding center formation.
Product Parameters

Specification	Load Capacity(T)	Center Distance(mm)	Roller Diameter (mm)	Roller Width (mm)	Workpiece Diameter (mm)
ZT5	5	1030	250	120	300-2500
ZT10	10	1070	300	150	300-3000
ZT20	20	1180	300	170	400-3500
ZT30	30	1270	300	200	400-3800
ZT40	40	1600	350	200	600-4500
ZT50	50	1700	400	200	750-5000
ZT60	60	1850	425	220	750-5500
ZT80	80	1950	425	220	900-5800
ZT100	100	2200	425	240	1000-6000

Main Products
We mainly specialize in the research and production of welding manipulators, welding rotators, and welding positioners series.
We also provide longitudinal seam welding machines, circumferential seam welding machines, internal and external seam welding machines for various sizes of cylindrical bodies, various types of hardfacing machines, fully automated numerical control, and intelligent equipment, laser cutting equipment, robot assembly, and workstations.
Our products have been serving more than ten countries globally.

FAQ 1) Q:Are you a factory or trading company?
A: We are direct manufacturer and trading company.
2) Q: Where is your factory located? How can l visit there?
A: Our factory is located in Zhengzhou city,Henan Province,China. You can fiy to Zhengzhou airport directly.
3) Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory has gained lsO approval, SGS report and CE certificate
4) Q: Does your company accept ClF price?
A: Yes. We will state ClF price clearly on the quote according to the different destination port and various in differentmonths.
5) Q: l would like to ask you if it's possible to have my logo on the product.
A: Our company perfectly support customized logo service, but it will be extra service fee for logo modeling or if youcould provide .
6)Q: Can your equipment be customized?
A: Yes. We have a professional design team, which can be customized according to customer requirements.
