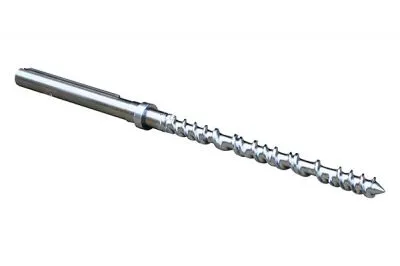

Rubber Mould Machine Parts
| US$857.00-3,771.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Screw Out-diameter 20-300mm
Type
Tube Head Injection
Structure
Vertical and Horizontal Composite
Plastic Type
Thermosetting
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Non-Automatic
Computerized
Computerized
Certification
ISO9001:2008
Warranty and Service
1 Year
Delivery Ways
by Sea or by Air
Tempering Hardness
Hb240 to 280
Nitriding Hardness
Hv950-1000
Bimetallic Hardness
HRC55 to 62
Surface Roughness
Ra0.4
Straightness
0.015mm
Chrome Plating
0.05-0.1mm
Transport Package
Wood Case
Specification
ISO9001: 2008
Trademark
DONGBIN
Origin
China
HS Code
84779000
Production Capacity
3000
Product Description
Standard
Diameter:φ20-φ300mm
Ratio of length to diameter:L/D=15-55
Materials
38CrMoAIA/SACM645/SKD11/SKD61/42CrMo
Duplex stainless Steels
GH3#
Power Metallurgy Raw Material
Cold/Thermal Spray Hard Metal Process
Advanced Nitriding Process
Corrosion&Abrasion Resistance Bimetal Spraying Process
Technical Index
| Product | Screw&Barrel |
| Tempering hardness | HB240-280 |
| Hardness of nitrogen treatment | HV950-1000 |
| Depth of nitrogen layer | 0.55-0.70 |
| Nitride brittleness | Less than grade 1 |
| Surface roughness | Ra 0.4 |
| Screw straightness | 0.015mm |
| Hardness after nitride | ≥900HV |
| Chromium-plating depth | 0.05-0.10mm |
| Alloy hardness | HRC55-62 |
| Alloy Depth | 1.5-2.0mm |
Production Process as below:
01 Blanking-02 Quenching and Tempering-03 RoughTurning-04 Detecting-05 Semi Finishing Turning-06 Aging Treatment-07 Rough Grinding
08 Crossed Thread-09 Milling Cutter Roove-10 Turning Thread Groove-11 Tempering-12 Polishing Thread Groove-13 Fine Gringding-14 Milling Keyway-15 Fitter-16 Detecting-17 Nitriding or Bimetallic Treatment-18 Cut Off Process Allowance-19 Polishing Thread Groove-20 Detecting
Our Service
Warranty and service: 1years
Our Advantages
1)Excellent raw materials
2)Good customer service
3)Rapid delivery
4)Reasonable price
5)Production quickly
