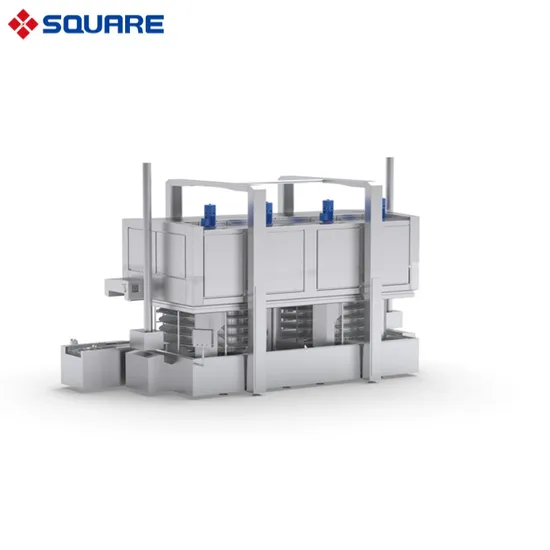

Square High Quality Huge Capacity Chicken Automatic Double Drum Spiral Oven

Product Description

Production Name	Spiral Oven
Heating method:	Thermal oil / Electrical heating
Operating Temperature	0-200ºC
Belt Width	600mm
Belt type	304 stainless steel mesh belt
Capacity Range	500 to 3,000 kg/h
Cleaning	CIP automatic cleaning
Drum type	500 to 3,000 kg/h
Enclosure	Stainless steel fully welded enclosure, rock wool insulated. Enclosure can be lifted during cleaning process
Control	Touch screen PLC control
Advantage	Minimum steam & vapour escape Maximum loading density Efficient heat control Consistent product quality Higher yield

Square's spiral oven is a hot-air cooking system that can be used to cook or grill a wide variety of products. Using a spiral Oven, the product gets the color, bite and flavor you want.
Our spiral oven can handle an unlimited number of combinations of air temperature, humidity and speed
1.Advanced Air Circulation DesignMixed air flow delivers continuous uniform cooking across all belts for faster cooking.
Available in single or twin drum configurations, the spiral Oven is built to suit your unique product requirements.

2.Precise Humidity and Temperature Control Two spiral areas are individually controlled for temperature and humidity, and the PID program regulates temperature and humidity in time precisely.
3.Unique Double Spiral Drive TechnologyPatented double spiral drive technology, smooth and reliable belt running.

4.Hygienic Design & CIP SystemThe Oven is equipped a CIP(cleaning-in-place) system including a belt washer. The cleaning nozzles cover all inside area, and the cleaning process can be carried out automatically or manually per PLC program.

5.Friendly HMI InterfacePLC touch screen control system, friendly interface, easy to operate.
Real-time Oven status, temperature of each area, fault alarms.
Pre-set cooking program for different product.
Remote internet module is optional.


Square Technology Group Co. Ltd is a listed company in Shanghai-stock Exchange. The company has been manufacturing freezing systems for over 39 years and is the largest industrial freezer manufacturer in the China.
Our manufacturing facility is located in Nantong, China, with some 1800 employees and 64 hectares' land. We serve a wide range of food processing industries and can draw from our extensive experience to provide our customers the best value and ensure maximum profitability.
The product line includes spiral freezer, plate freezer, tunnel IQF, refrigeration system, cold cooler, insulated panel, cooler, oven, ice machine, etc.
Our products have been exported to over 80 countries covering various applications, including seafood, protein, bakery, vegetable, fruits, etc. Square dedicate to deliver the superior quality freezing equipment to our client.
