CE Approved GMP Standard Pharmaceutical Trouch Mixer Mixing Machine Blender for Food Chemical Pharma Machinery
| US$3,299.00-15,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CH-200, 500, 1000, 1500
Application
Liquid with Suspended Solids, Powder, Granules
Application Area
Pharmaceutical, Chemical
Certification
CE, ISO, CE
Condition
New
Mixing Drum Shape
Trough Type
Stirring Type
Spiral
Warranty
12months
Working
Shear Mixer
for Humid Material Mixing
for Powder Mixing in Pharmaceutical Industry
with Various Volumes of Mixing Capacity
200L, 300L, 400L, 500L, 1000L and More
for Chemical Industry
for Pharmaceutical Industry
for Food Industry Mixing of Wet Material
for Mixing of Pill Making
Layout Type
Horizontal
Operating type
Cycle Operating
Mixer Type
Trough Mixer
Transport Package
Export Standard Packaging
Specification
CE
Trademark
SYQPM
Origin
Shanghai
HS Code
8419820090
Production Capacity
800PCS/Y
Product Description

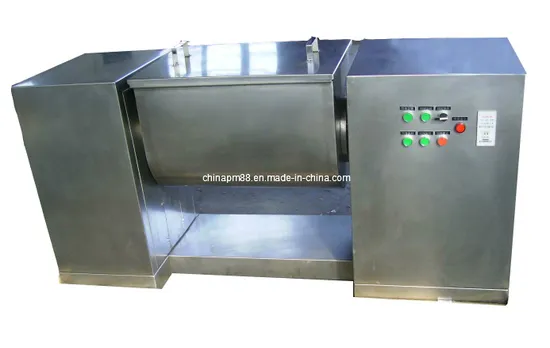

The machine is stainless steel horizontal channel mixer, in the pharmaceutical, chemical, food industries for mixing powder or paste materials.
By mechanical rotation, the S-type impeller rotating, flipping back and forth to
promote the material and mix, operation, use of electrical control, mixing time
can be set to automatically shut down, thereby improving the quality of each
batch of mixed material.
Technical parameters of CH-100/200 for small scaled manufacturing:
| Model | Blade shape | Working volume (L) | Mixing speed (r/min) | Stirring angle | Stirring power (KW) | Batch turning power (KW) | Overall dimension (mm) | Weight (kg) |
| CH-100 | S type single screw | 100 | 24 | <105° | 2.2 | 0.55 | 1380×600×1000 | 400 |
| CH-200 | 200 | 20 | 4 | 0.75 | 2000×650×1200 | 450 |
Technical parameters of CH-500 for medium scaled manufacturing:
| Full volume (m3) | 500L |
| Overall dimensions(mm) | 2500×860×1450 |
| Loading coefficient | 0.5 |
| Motor of feeding material(KW) | 1.5 |
| Working environment | Environment temperature,pressure,dust sealing |
| Working capacity(kg)P=1g/cm3 | 200-250 |
| Motor power(kw) | 7.5 |
| Mixing time(min) | 10~30(for some special material, we have to do a test in lab) |
| Material of mixing chamber | SUS304 |
| G.W(kg) | 780 |
| Model | CH 1000 | |||
| Trough capacity(kg) | 320 | |||
| Main arm speed(min) | 24 | |||
| Mixing cycle/ (min) | 5-20 | |||
| Main motor(kw) | 7.5 | |||
| Dumping motor(kw) | 0.75 | |||
| Net weight(kg) | 1200 | |||
| Overall size(mm) | 2280×1100×1500 |
Welcome to check with us for more information.
Thanks.
