Safety and Brand Senior Polyester Film Forming Machine for Busway System

Product Description

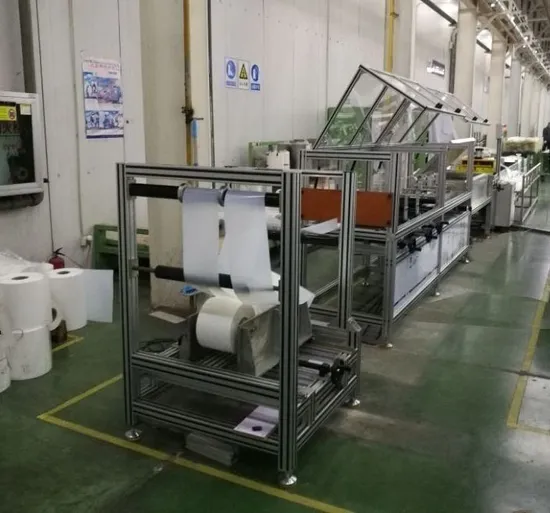

Mylar film forming machine for busway system production
Digital polyester film forming machine is used for forming the compact busbar polyester film.
Specification of digital polyester film machine:

Dynamic power:	three phase 380V±10%,50Hz(can be customized)
Air pressure:	0.6Mpa
Environmental condition:	humidity 60%
Temperature:	-10ºC~40ºC
Shaped width after being formed:	30mm~250mm
Channels	one channel or two channels

Advantages of digital polyester film machine:
1) Adopt the heater for heating procedure: Power: 6kW. The max temperature of outgoing position is ≤350°. Temperature can be adjusted.
2) The mold's width can be adjusted. No sharp angle or other defects after formed.
Configurations:

Touch screen

Reducer motor

Electrical parts

PLC

We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.
Step 1 Prepare all busbar finished components
Step 2 Use related busbar machines to process the busbar
Busbar machine copper processing
Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)

Busbar machine mylar sleeve processing machine polyester film forming machine
Need Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.

Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping
Busbar machine busbar accessory Aluminum profile capped casting capped end
Busbar machine Busbar riveting machine

Busbar machine busbar inspection machine busbar testing machine
Busbar machine busbar packing machine busbar packaging machine

Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen
Busbar machine busbar accessory joint isolator
