CH-600 Trough Blending Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CH-600
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Spiral
Working
High Speed Mixer
Applied in
Food or Pharmaceutical
Size
2400*900*1300
Working Volume
600
Speed of Agitating Paddle
24
Turning Angle
<105
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8474390000
Production Capacity
600
Product Description

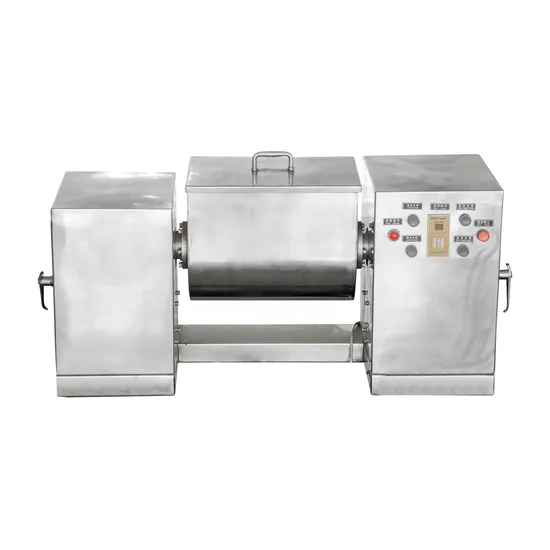

CH-600 Trough Type MixerMain Application :
As a whole stainless horizontal tanker typed mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Technical Parameters:
| Model | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 | CH-600 |
| Working volume(L) | 100 | 200 | 220 | 300 | 400 | 550 |
| Speed of agitating paddle | 24 | 24 | 24 | 24 | 24 | 24 |
| Turning angle | <105 | <105 | <105 | <105 | <105 | <105 |
| Agitation motor | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Discharging motor(kw) | 0.55 | 1 | 0.75 | 0.75 | 1.5 | 1.5 |
| Overall dimension(mm) | 1480*600*1190 | 1600*600*1250 | 2150*700*1250 | 2280*800*1250 | 2400*900*1250 | 2400*900*1300 |
| Weight(kw) | 650 | 720 | 750 | 780 | 820 | 850 |
Working Principle:
CH type agitating paddle is rotated, by mechanical driving, which pushes the material to turn repeatedly and to mix uniformly. operate with electrical control, it can set mixing time to realize au-tomatic stop and electric discharge upon expiration, thus improving the mixing quality of each batch of material and realizing high homegeneous mixing.
