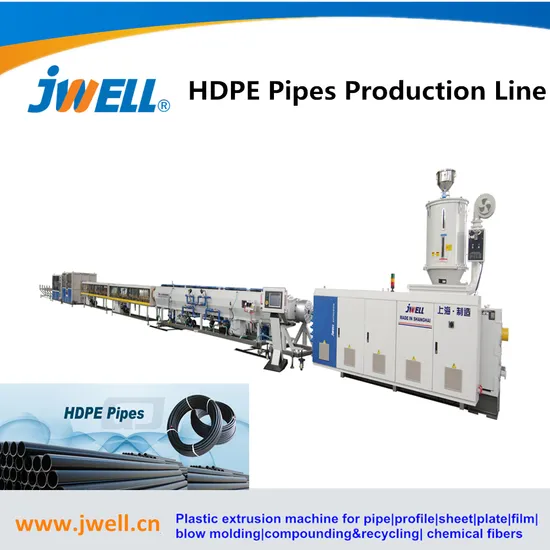

HDPE Silicon Core Pipe Extrusion Line

HDPE Silicon Core Pipe Extrusion Line

US$25,000.00-70,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
hdpe silicon core pipe extrusion line
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Customized
Customized
Condition
New
Pipe Material
HDPE PE PP Mpp
Speed
Normal or High Speed
Layers
Single Layer or Multi Layer
Application
Water Gas Supply, Irrigation, Marine, Mining
Extruder
Jws65/33, 75/33, 90/33, 150/38 Customized
Control
PLC HMI
Production
Stable and High Speed
Waranty Time
1 Year
Engergy Saving
up to 35%
Pipe Measuring and Controlling
Online Automatic Measuring System
PLC
Siemens
Converter
ABB Rexroth
Motor
Weg
Screw and Barrel
Jinhailuo Since 1978
After Sale Service
Yes
Transport Package
PE Foam and Pallet Packing
Specification
20mm to 3000mm diameter
Trademark
jwell
Origin
Shanghai China
HS Code
84778000
Production Capacity
2000 Lines/Year

Product Description

hdpe silicon core pipe extrusion line
Product Overview
Outer Diameter 20mm Up to 3000mm (customized)
Model No. JWPEG, JWGXPE (customized)
Power Range Up to 1550 (kW) (customized)
Production Capacity Up to 2500 kg/h (customized)
Layers Single layer or multi-layer HDPE pipes (customized)
Extruders JWS65/33, JWS75/33,JWS90/33,JWS120/38,JWS150/38 (customized)
Material HDPE MDPE High density Polyethylene PE (customized)
Guarantee Time 1 year (customized)
Certification CE, TUV, SGS

Product Description
Product Name HDPE MDPE PP pipe extrusion line, pipe machine
Energy Saving Ratio Up to 35%
Properties Fully Automatic, stable production, large output
Speed Range Normal speed and high speed optional
Standard European
Loading Type Automatic dryer and loader Vacuum suction
Brand for Extruder Jwell
Brand for Screw&Barrel China famous brand JINHAILUO since 1978
Electrical parts, gearbox,
vacuum pump, auxiliary part
SIEMENS PLC, ABB, Roxroth, WEG, Schneider, OMRON (customized)

This pipe production line adopts advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.
Compared with common production line,the energy saving effect reach on 35%, and the product efficiency
increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.
This production line has nice appearance,higher automatic degree ,production reliable and stable.
Specification
Model: Classic Type Extrusion Line for HDPE pipe, PP/MPP pipe
Type Diameter mm Extruder Capacity
(kg/h)
Power(kW)
JWPEG-63 ∅20- 63 JWS65/33 100-150 100
JWPEG-110 ∅20-110 JWS65/33 150-200 130
JWPEG-160 ∅63-160 JWS65/33 200-250 145
JWPEG-250 ∅75-250 JWS75/33 250-350 210
JWPEG-315 ∅90-315 JWS75/33 250-350 260
JWPEG-450 ∅160-450 JWS90/33 450-550 380
JWPEG-630 ∅315-630 JWS120/33 700-900 530
Model: High Speed Extrusion Line for HDPE water pipe, gas pipe
Type Diameter mm Extruder Capacity(kg/h) Power(kW)
JWGXPE-75 ∅20-75 JWS60×40 360 150
JWGXPE-250 ∅50-250 JWS75×38 600 230
JWGXPE-450 ∅160-450 JWE90×38 900 450
JWGXPE-630 ∅315-630 JWS120×38 1300 630
JWGXPE-800 ∅450-800 JWS120×38 1200 680
JWGXPE-1000 ∅500-1000 JWS120×38 1400 815
JWGXPE-1200 ∅710-1200 JWS120×38 1400 930
JWGXPE-1600 ∅900-1600 JWS150×38 1900 1200
Large Diameter HDPE Water Supply and Gas Supply pipe Extrusion Line
Type Diameter mm Extruder Capacity
(kg/h)
Power(kW)
JWPEG-800 ∅450-800 JWS120/38 1000-1300 600
JWPEG-1000 ∅630-1000 JWS120/38 1000-1300 650
JWPEG-1200 ∅800-1200 JWS90/38 JWS120/38 1000-1500 960
JWPEG-1600 ∅1000-1600 JWS120/38 1000-1700 1300
JWPEG-2500 ∅1400-2500 JWS150/38 1500-2000 1400
JWPEG-3000 ∅2000-3000 JWS150/38 2000-3500 1550
Note: Contact us for customized sizes, specification, functions.

Pipeline Drawing
PVC PIPE Specification
Model: Classic Type Extrusion Line for PVC UPVC CPVC pipe
Type Diameter mm Extruder Capacity
(kg/h)
Power(kW)
JWG-PVC32(Quadruple) ∅16-32 SJZ65/132 250-300 104
JWG-PVC63 (dual) ∅16-63 SJZ65/132 250-300 105
JWG -PVC110(dual) ∅50-110 SJZ80/173 450-500 165
JWG -PVC160 ∅63-160 SJZ65/132 250-300 100
JWG-PVC250 ∅75-250 SJZ80/156 300-400 110
JWG-PVC315 ∅160-315 SJZ80/156 300-400 180
JWG-PVC450 ∅200-450 SJZ80/173 450-500 245
JWG-PVC630 ∅315-630 SJZ92/188 650-750 350
JWG-PVC800 ∅400-800 SJZ110/220 1000-1300 420
JWG-PVC1000 ∅500-1000 SJZ110/220 1000-1300 460
Note: Contact us for customized sizes, specification, functions.

Applications
Customized Solutions
Company Information
As the vice unit of CPMIA, Shanghai Jwell Machinery Co., Ltd is the biggest manufacturer of plastic extrusion
machinery and chemical fiber spinning equipment in China, its head office is located in thewestern district of
Shanghai. There are 5 production bases, which were located in the western districtof Shanghai, Zhoushan of
Zhejiang Province, Suzhou of Jiangsu and Changzhou of Jiangsu , Dongguan of Guangdong , totally covering
700,000 square meters. It has more than 2600 staffs, about 400 technicians and managing staffs.
Main products: various plastic pipes extrusion lines including large diameter PE/PVC double wall corrugated
pipe extrusion line, large diameter PE/PVC solid wall pipe extrusion line, PP-R/PEX/PE-RT cool/hot water pipe
extrusion line, PA/PE/PVC single wall corrugated pipe extrusion line; various plastic profile extrusion lines;
various plastic plate & sheet extrusion lines; chemical fiber spinning; microcomputer controlled automatic blow
molding machines; plastic auxiliary recycling lines; various single & twin screw and barrel extruders;
T die; screen exchangers; Rollers and Robots.

Why us
Pioneering Efforts, Unity and Struggle
Seeking for innovative and practical technology, We grow rapidly with the market trend. Every person is a product
person in creating better customer experience. Trust is the corner stone of our corporate. As we truly believe the
staffs are the most precious wealth, if we take care of our employees, so as each person would take care of the
customers. "Be Honest" is the core idea for us to build an everlasting enterprise.
Consistent quality, Brands Building.
We have kept an eye on the quality during all procedures since the birth or our enterprise. Consistent quality would
be the only virtue which we highly uphold. Every product marking JWELL represents safety, stability, reliability.
Cutting edge technology, Added value products
We have professional designing engineer who recognize the market need well. We add value to customers' business
by innovative designs and products that will provide competitive advantage over your rivals.
Capable of ultimate one stop solution
There are various of products ranges, flexible order quantity, customized designs. Our products are capable of ultimate
one stop solution for different sizes of projects and business. With pre-sale and after-sale assistance, prompt delivery,
we care the customers' satisfaction and benefits.
Certificate and Brand
Sales Service Networks
FAQ
Q1. Is Jwell Machinery a Manufacturer?
A1: Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Q2: How many brands does Jwell Machinery own?
A2: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN
are our Trade Marks.
Q3: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per
customers' specific requirement?
A3: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed
requirements by email. We will check if we can develop them. We develop new machinery every month, and
some of them may not yet be updated on our website.
Q4: How do you ensure your machinery and service quality?
A4: Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Q5: How can I order and make payments?
A5: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
Q6: If we find your bank account or email different as before, how should we respond?
A6: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in
every piece of proforma invoice. ) We are only responsible for email " " .
Q7: How long is the delivery date?
A7: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.
Q8: What is your Minimum Order Quantity?
A8: One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
A9: We produce more than 2000 advanced extrusion lines every year world wide.
A10: What about shipping?
Q10: We can send the small spare parts by air express for urgent matter. And the complete production line by sea
to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Q11: Is there any pre-after sale service?
A11: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
operation and maintenance service for a life time.
Q12:Are our business& money safe with Jwell Machinery ?
A12: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is
not contain our name as we never crook our customer before.
