Mining Construction Building Materials Metallurgy Quarry Crushing Equipment Impact Crusher

Product Description

Product Description

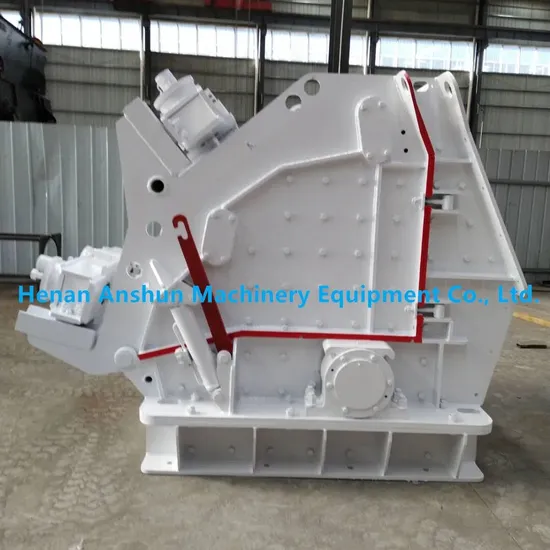

An impact crusher is a crushing machine that uses impact energy to crush materials. This crushing equipment can handle various materials with a particle size not exceeding 1000 mm and a compressive strength not exceeding 350 MPa. It has a large crushing ratio, high crushing efficiency and easy maintenance. The product is cube-shaped and is an ideal processing equipment for aggregates used in highway and hydropower construction. Impact crushers are widely used in highway construction, water conservancy projects and construction gravel processing due to their stable performance.
Product Advantages
Great Breaking Force
The rotor has a high-strength and heavy-duty design, has a significant moment of inertia and impact crushing force, and is more suitable for crushing large materials.
One machine for Two Purposes
By adjusting the installation position of the impact rack, the conversion between coarse crushing and medium-fine crushing can be achieved, and one machine can be used for both purposes.
Hydraulic Adjustment
The gap between the impact plate and the plate hammer is adjusted hydraulically, which is convenient and quick and can effectively control the discharge particle size and good particle shape.
Easy Maintenance
The frame is simple and convenient to open, making it easy to perform maintenance inspections and replace worn parts inside the machine.
Working Principle
Impact crushers use impact energy to break materials. When working, driven by the motor, the rotor rotates at high speed. When the material enters the blow bar action area, it is crushed by impact with the blow bar on the rotor, thrown to the impact device for grinding again, and bounces back from the impact lining. It goes to the plate hammer action area for re-crushing, and this process is repeated until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the material discharge particle size and shape.

Model	Rotor Size(mm)	Feed Opening (mm)	Max Feed Size (mm)	Capacity(t/h)	Power(kW)	Weight(t)
PF-1007	1000×700	400×730	250	30-50	37-55	9.5
PF-1010	1000×1050	400×1080	300	50-80	55-75	14
PF-1210	1250×1050	400×1080	300	70-120	110-132	17
PF-1214	1250×1400	400×1430	300	130-180	132-160	22
PF-1315	1320×1500	830×1520	350	160-250	185-200	26
PF-1320	1320×2000	830×2030	400	300-350	220	30
PF-1520	1520×2000	860×2050	700	300-550	2×200	49

Applicable Materials
Impact crusher is used for crushing coal , various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.
Processing Material: Coarse, Medium and Fine materials (granite, limestone, concrete, etc.) Grain size is less than 500mm Compression strength is less than 150MPa.

Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.


Packaging & Shipping

Certifications

FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
