US$90,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tube Shoulder Injection
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Machine Dimension
10.5X2.5X2.6m
Selling Point
High Precision Energy-Saving
Plastic Processed
PP, PC, ABS, Pet, PVC, FRPP/PVC, PPR, HDPE, Mlldpe
Core Component
Bearing, Motor, Pressure Vessel
Transport Package
Wooden Pallet
Production Capacity
1000sets/Year
Product Description
Detailed Photos
The Haida bucket-making machine adopt high performance hyfraulic system, choose famous brand electro-hydraulic proportional valve, meet the manipulator to open mold stop position of the harsh requirements, the use of excellent experience.
FRAME
High rigidify frame, open outlet, reserve full automatic operation space and plan, adapt to high intensity production requirements.
STRUCTURE
Large mold opening stroke, high strength mold closing structure, suitable for the special needs of barrel mould.

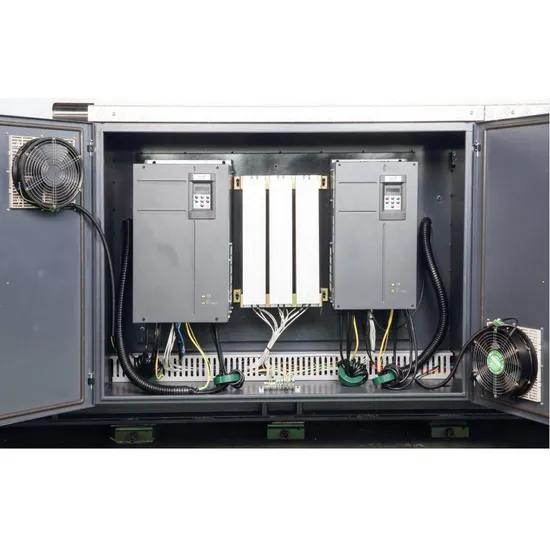

CONTROL SYSTEM
Professional injection moulding machine control system, large brand high-performance electronic control componets.
SCREW
Screw special design, strong plasticizing ability, short molding cycle, long service life.
Product Parameters
ITEM | UNIT | DATA- HD700U |
Injection Unit | Screw Diameter | mm | 85 |
Screw L/D Ratio | L/D | 24.2 |
Injection Volume | cm3 | 2638 |
Shot Weight | g | 1978 |
Plasticizing capacity | g/s | 85 |
Injection Rate | g/s | 480 |
Injection Pressure | Mpa | 200 |
Clamping Unit | Clamping Force | KN | 7000 |
Opening Stroke | mm | 980 |
Space Between Tie-Bars | mm | 850x750 |
Mould Thickness(Min-Max) | mm | 600-950 |
Hydraulic Ejection | KN | 125 |
Ejector Stroke | mm | 240 |
General | Pump Pressure | Mpa | 16 |
Motor Power | KW | 45x2 |
Heater | KW | 36 |
Machine Dimension | m | 10.5x2.5x2.6 |
Machine Weight | T | 30 |
Mould Orientation Ring Diameter | mm | Φ160 |
Nozzle Radius | mm | SR20 |
Application field
Packaging & Shipping
After Sales Service
Company Profile
Ningbo Haida Plastic Machinery Co.,ltd is a manufacture specilized in manufacturing HAIDA series automatic plastic injection molding machine, vice president of China Plastic Machine Industry Association.
Established in 1992, the company has been devoted to development, production and sales of efficient, personalized and cost-effective injection machine.
-One of TOP 10 enterprises in plastic injection machine industry of China, company area over 2,000,000 square meters; Over 500 employees;
-Passed ISO9001, ISO14001, OHSAS18001 and CE Certification;
-Stronge R & D capability. More than 100 types of injection machine from 50 tons to 3300 tons are in production.
-More than 60 sales and service agencies at home and abroad.
