Explosion Proof PTZ Camera Waterproof Weatherproof Outdoor Wiper Camera with Spray Water Tank

Product Description

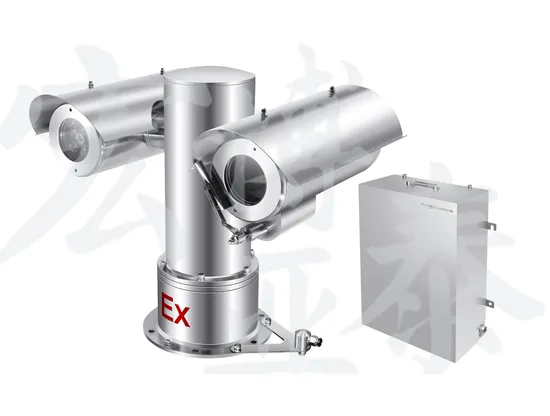

[30x 5mp] Explosion-proof infrared HD PTZ integrated camera
HB-8000S -F8530
Functional Characteristics · Double explosion-proof certification, explosion-proof mark: Ex db IIC T6 Gb/Ex tb IIIC T80ºC Db
· Adopt high-performance 5 million pixels, 1 / 2.8" CMOS sensor, high image definition
· Equipped with 30x optical zoom, 16x digital zoom, focal length range: 5.3 ~ 159mm
· Low light monitoring, color: 0.07 Lux @ (F1.6, AGC ON), black and white: 0.007 Lux
· Using multi-angle matte/bright array infrared lights, low heat energy, low power consumption, irradiation distance up to 100 meters
· Supports intelligent detection of regional intrusion, single cordon, double cordon, loitering, retrograde traffic, illegal parking, people counting, etc.
· Supports 3D digital noise reduction, strong light suppression, fog penetration, electronic image stabilization, and wide dynamic range
· 255 preset positions, power-off memory, automatic cruise, smart wipers and other functions
· 360° continuous rotation in horizontal direction, ±90° in vertical direction, no blind spot for monitoring
· Worm gear transmission structure design, precision stepper motor drive, sensitive response, smooth operation
· Built-in semiconductor temperature-controllable components to realize automatic heating and cooling functions
· The window is made of special explosion-proof glass. The glass surface is treated with nanotechnology. It has high light transmittance, is non-stick to water, non-stick to oil, and repels dust.
· Equipped with an explosion-proof automatic sprinkler device, built-in power system and water storage device, providing a powerful water source to cooperate with the wiper to wash the window glass
· Made of 304 stainless steel, suitable for use in highly corrosive environments such as chemical industry, acid and alkali, etc.
Use Environment It is suitable for places with combustible gases of Class IIA, IIB and IIC, Zone 1 and Zone 2 with ignition temperature group T1-T6, and places where combustible gases or vapors form explosive mixtures with air.
It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture. Such as: petroleum, chemical industry, mine, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
Technical Parameters

Product name	Explosion-proof Spray PTZ Camera
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Maximum resolution	2592×1944 (5MP)
Video format	PAL/NTSC
Minimum illumination	Color: 0.07 Lux @ (F1.6, AGC ON), Black and White: 0.007 Lux
Irradiation distance	100 metres
Electronic shutter	Automatic/manual, 1/5 ~ 1/20,000s
Day and night conversion mode	Automatic
Focal length	5.3~159mm
Aperture	F1.6 ~ F4.3
Field of view	H: 56.62° ~ 2.48°, V: 42.76° ~ 1.91°
Optical zoom	30 times
Digital zoom	16 times
Focus method	Automatic/manual/semi-automatic
Multiple streams	3 code streams
Video stream/frame rate	Code stream one: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps
Rate control	CBR/VBR
Code rate	Stream 1: 200kbps~12Mbps Stream 2: 100kbps~6Mbps Stream three: 100kbps~3Mbps
Audio compression format	G.711 (64kbps), RAW_PCM (128kbps)
Smart Encode	Support
Region of Interest (ROI)	Support
Image adjustment	Brightness, contrast, saturation, sharpness
Exposure mode	Automatic / manual
White balance	Automatic / manual
Day and night mode	Auto/Night Mode/Day Mode/Time
Noise reduction	2D/3D digital noise reduction
Wide dynamic range	Real wide dynamic range
Image enhancement	Strong light suppression, backlight compensation, electronic image stabilization, fog penetration
Signal-to-noise ratio	55dB
Privacy masking	Supports 40 privacy areas, a single screen supports up to 8, and the size of the privacy area can be set
Ordinary events	Motion detection alarm, I/O alarm, disk alarm, event triggering according to plan
AI multi-target	Supports face, humanoid, and vehicle detection and capture
Pyrotechnic detection	Support
Intelligent analysis	Area invasion, single cordon, double cordon, multiple people wandering, retrograde traffic, illegal parking (supports accurate humanoid/vehicle detection), people counting
Network protocol	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
Number of concurrent access users	Route 10
Device auto-discovery	Support
IP filtering	Support
Device supports browser	<IE11, Chrome, Firefox, Microsoft Edge
User rights	Divided into 2 levels: administrators and ordinary users. Administrators can assign various permissions to ordinary users.
Integrated features	ONVIF, SDK
PTZ
Rotation range	Horizontal: 360° continuous rotation; vertical: ±90°
Rotation speed	Horizontal: 0.1°- 40°/s, vertical: 0.1°- 40°/s
Preset	255
Preset position accuracy	±0.1°
Auto cruise	4 strips, each strip can add 16 preset points
Watch function	Support
Variable speed limit	Support
Power off memory	Support
Explosion-proof automatic sprinkler device
Working principle	The built-in power system and water storage device provide a powerful water source for washing the window glass in conjunction with the explosion-proof pan-tilt wiper.
Water flow speed	500mL/min
Vertical height of water flow	>10m
Amount of water sprayed each time	40mL
Water tank capacity	15L
Water pipe material	304 stainless steel
Water pipe specifications	Outer diameter 8mm, wall thickness 1mm
Water pipe inner diameter	6mm
Water pipe length	10m (can be customized as required)
Cable interface	1 M25*1.5 outlet
Cable length	10m
Weight	Empty box: 20kg; full box: 35kg
Size	Length 436* Width 202* Height 652mm
Operating temperature	-15ºC~+60ºC
Shell material	304, 316L stainless steel material (optional)
Installation method	Platform installation
Installation hole position	4 pcs of Ø9mm mounting holes
General specifications
Explosion-proof signs	Ex db IIC T6 Gb/Ex tb IIIC T80ºC Db
Protection level	IP68
Operating temperature and humidity	-40ºC~+60ºC
Power supply	AC100V~240V/DC24V 3A (optional)
product material	304 stainless steel material
Audio port	1 in, 1 out (optional)
Alarm interface	1 in, 1 out (optional)
Network Interface	Built-in RJ45 network port, supports 10M/100M network data
Storage function	Built-in Micro SD card slot, supports up to 256GB
Cable entry hole specifications	2 G3/4" cable entries
Installation method	A variety of installation methods are available to choose according to the application environment
Product weight	≤30 kg

Product Size

Company Profile Beijing Hongbo Yatai Electrical Equipment Co., Ltd, founded in 2011, excels in the production of industrial explosion-proof cameras and tailored solutions. As a prestigious high-tech enterprise, we seamlessly blend R&D, production, sales, and exceptional service.
Our company boasts two cutting-edge research and development centers alongside two state-of-the-art production bases. With unparalleled mechanical and electrical design capabilities, we are equipped with advanced electrical and mechanical testing centers. Hongbo Yatai takes pride in its relentless pursuit of innovation, holding comprehensive independent intellectual property rights over its product technologies.
With video as the core, Hongbo Yatai utilizes IoT sensing, artificial intelligence, and big data technologies to serve the energy industry, leading the way to a smart future for energy. Based on the production safety management needs of the energy industry, it adapts to the harsh and hazardous environments in the industry. By combining high-definition video and AI analysis capabilities, it achieves full-scenario monitoring, standardized management of the "person, object, environment, and control" throughout the production process, intelligent early warning, and reduces the occurrence of production safety hazards. It assists in the digital upgrade of enterprises, safeguarding safety and ensuring production.
Our products find extensive applications across specialized sectors including petrochemicals, natural gas, coal mines, marine, and aerospace industries. Hongbo Yatai has notably contributed to numerous large-scale projects, garnering a stellar reputation for our distinguished brand.
