Mini Auto Diesel Concrete Mixer Pump Beton Concrete Machinery

Product Description

CONCRETE MIXER PUMP Electricity or Diesel Powered World Famous Brands Main Parts

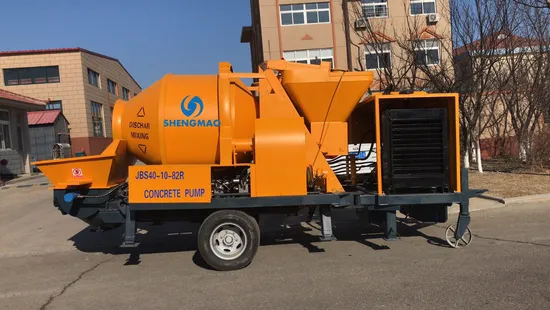

JBS40R diesel concrete pump with mixer
The mixer can be drum mixer, twin-shaft mixer and pan mixer. And an aggregate batching machine can be equipped to increase the concrete formula accuracy.

Product Description
JBS40R diesel concrete mixer pump Concrete Mixer Pump is a multi function machine which combines the function of concrete mixer and concrete pump. It can produce and deliver concrete. The mixer can be drum mixer, twin-shaft mixer and planetary mixer.
World famous brands of main parts are used for our concrete mixer pump,
The concrete mixer pump can be diesel powered or electricity powered. If you have power supply on job site, electricity powered concrete mixer pump can be shosen because it is more cost-saving..

Item		Units	JBS40R Concrete MIxer Pump
Whole performance of machine	Pump Max. theoretical. concrete output	m3/h	40
	Charging (hopper) capacity of mixer	m3	0.56
	Discharging capacity of mixer	m3	0.35
	Max. concrete pumping pressure	Mpa	10
	Distribution valve type		S Valve
	Concrete cylinder diameter stroke	mm	Ф180×1000
	Hopper capacity	L	600L
	Outlet diameter	mm	Ф125
Power system	Diesel engine model	--	weichai
	Electrical engineering power	kW	82KW
	Rotate speed	r/min	2300
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	31.5
	Mixing system pressure	MPa	6
	Capacity of oil tank	L	350
The max. Delivery distance (vertical/horizontal)		m	150/600
Other parameters	Mixer capacity	M3/h	10-14m3/h
	Max. aggregate diameter	mm	40
	Inside diameter of delivering pipe	mm	Ф125
	Dimensions:length*width*height	mm	6900x2300x3150
	Total weight	kg	8500kg
	Tire	Pcs	4

Main Features 1) Saving cost; one machine has two functions: producing concrete and delivering concrete;
2) Saving labours; one operator is ok;
3) Easy to operate; remote control is available;
4) Reliable performance; If the machine is operated properly, it can work properly more than 5 years;
5) Easy to move; the machine has wheels, we can use a car to tow it to another job site easily.
Detailed Images
Machine Parts
Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.


Name: Hydraulic pump
Original: Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.
Machine Parts
Name: Hydraulic oil pipe
Brand: Manuli
Original: Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.


Name: PLC
Original: Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
Other concrete mixer pump
Concrete pump with twin-shaft mixer
The concrete mixer can be JS500, JS750 twin-shaft concrete mixer
Concrete pump with pan mixer
The Pan mixer can be 500L or 750L
Concrete mixing pump with aggregate batching machine
Concrete mixing pump doesn't have scales for aggregates. With the help of aggregate batching machine, we can highly improve the concrete quality produced by concrete mixing pump.
Our Service
Pre-Sales Service
* Providing solution for your construction project;
* Providing design drawing as per your requirements;
* Providing professional quotation for your inquiries.
After-Sales Service
* Machine installation and test running;
* Operators trainning and spare parts supply;
* Machine problems solving (by phone or job site visiting).
Packing & Delivery

Packaging
Size	6900 (L) * 2300 (W) * 3150 (D)
Weight	8.5 T
Packaging Details	The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box.
transportation cost	The price 32500USD only includes the shipping cost from China sea port to Manila port. The transportation cost from Manila port to customer's job site should be paid by customer.
