Bridge Saw Machine for Sale for Kitchen Worktop

Product Description

Product Parameters

Model	ZLBS-350CNC/4B	ZLBS-350CNC/4+1B
Worktable Size	3200mm X 2000mm	3200mm X 2000mm
Max Plate Cutting Size	3200mm X 2000mm X 65mm	3200mm X 2000mm X 65mm
Blade Diameter	300-350mm	300-350mm
Main Motor Power	15kw	15kw
Total Power	20.5kw	26.5kw
Dimensions	L5100mm X W3150mm X H2500mm	L5100mm X W3150mm X H2500mm
Water Consumption	2 m3/h	2 m3/h
Total Weight	3.8 Tons	4 Tons
Voltage	380V (Or Can be customized)	380V (Or Can be customized)
X-axis	X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting.	X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting.
Y-axis	Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable.	Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable.
Z-axis	Z-axis adopts 30 Linear Guide Rail and Ball screw.	Z-axis adopts 30 Linear Guide Rail and Ball screw.
C-axis	C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes.	C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes.
A-axis	axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability.	axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability.
Control center	PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.	PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.
Electric Spindle	Not adopted	Rotation Speed: 24000rpm; 5.5kw Power, To put a milling cutter for milling work
Shipment	20 feet container	20 feet container
Price for sale	$10,000~$16,000

Product Description

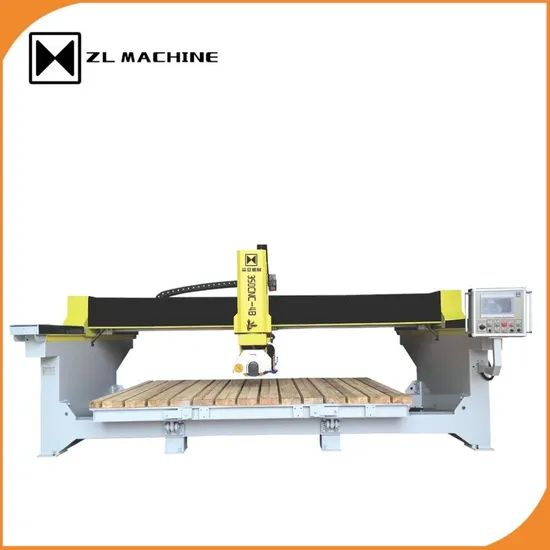

4 Axis Bridge Saw (Type: ZLBS-350CNC) is a machine for Marble, Granite, Natural Stones, Quartz Stone etc. With a milling cutter(350CNC/4+1 B), it can mill basin holes, faucet holes, inner angle and shape lines. It is a multifunctional machine with the most advanced technology in the industry, with this machine, operators can finish one product without moving slabs.

Applications
This 4 Axis Bridge Saw Cutting Machine can Cut Circles, polygons, and do vertical Cut, inclined Cut(45°), Chamfering,Orthogonal Cuts,Transversal Cuts,Longitudinal Cuts, etc.
It has can perform Stone Milling(Optional Function) for Faucet Holes, Inner angles, and four-sided under-hung countertops.

Application Fields:
* Residential & Commercial Interiors
* Decorative wall panels
* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms
* Worktops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
Features
Mono-Block Structure, taking less space, easy to install High Speed, High Precision Cutting. C-axis and A-axis use Robot Reducer, with High Quality and Good Performance. Strong Machine Structure with #30 Guide Rail for X.Y.Z axis. With a group of Rotating Cylinder to press workpieces during Milling work. (Specially designed by our factory) Automatic Oiling System, easy maintenance. Control system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.



Packaging & Shipping
This model can be loaded into a 20 feet' Container.
