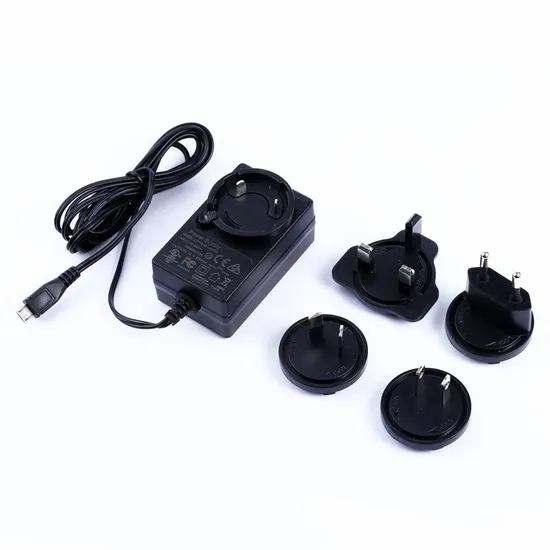

New Products Interchangeable Plug Adapter EU/Us/UK/Au/Cn Standard 18V 1A 30W Power Supply
| US$5.00-6.00 | 1,000 Sets (MOQ) |
Basic Info.
Model NO.
QW180-010-AI
Certification
TUV, RoHS, ISO9001, CCC, CE
Color
Black/White
Type
OEM
Internal Structure
On-Off Type
Power Source
Single End Type
Connection
Plug In
Bluetooth Standard
No
Brand
Quawin/OEM
Input Voltage
90-264VAC 47/63Hz
Plug-in Type
Yes
Delivery Date
25-35days
Warranty
One Year
Output Voltage
18V
Output Current
1A
Output Power
18W
Transport Package
PE+Inner Box+Carton
Specification
71.2 * 43.2 * 29mm
Trademark
QUAWIN/OEM
Origin
Guangdong China (Mainland)
HS Code
8504401400
Production Capacity
500000 PCS/Month
Product Description
Quick Detail:Brand Name:QUAWIN/OEM
Model Number:QW180-010-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:18V
Output current:1A
Output power:18W
Ripple & noise:150mV
Output Regulation:±5%
Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :71.2 * 43.2 * 30.3mm
Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max
Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 10 work days,25~35 days for bulk order
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Input protection
• Compliance with ROHS requirements
| Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency |
| QW050-030-AI | 5V | 3000mA | 90mV | VI |
| QW060-030-AI | 6V | 3000mA | 90mV | |
| QW090-020-AI | 9V | 2000mA | 90mV | |
| QW090-030-AI | 9V | 3000mA | 90mV | |
| QW120-015-AI | 12V | 1500mA | 120mV | |
| QW120-020-AI | 12V | 2000mA | 120mV | |
| QW120-025-AI | 12V | 2500mA | 120mV | |
| QW150-020-AI | 15V | 2000mA | 120mV | |
| QW180-010-AI | 18V | 1000mA | 150mV | |
| QW240-010-AI | 24V | 1000mA | 150mV |
