C41-40kg Self-Contained Power Hammer for Sale Blacksmith Power Forging Hammer
| US$3,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C41-40kg
Power Source
Pneumatic
Feature
Precision
Certification
CCC, CE
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Hammer
Small Power Hammer
Power Hammer
40 Kg
Transport Package
1080× 600× 1389
Specification
1350 kgs
Trademark
tokmc
Origin
China
HS Code
8462109000
Production Capacity
100 Sets/ Year
Product Description

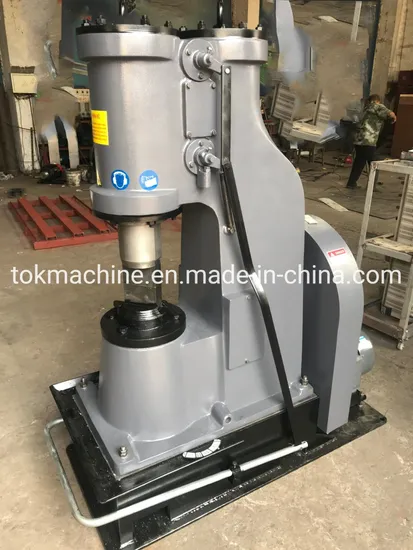

Small Pneumatic Power Hammer C41-40kg Air HammerMain feature
1. The air hammer is used for forging and shaping work pieces
2. Easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 2000kgs
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. forging in bolster dies.
Optional dies
| Specifications | C41-150kg | C41-75kg | C41-40kg |
| Attack energy(J) | 200 | 100 | 53 |
| Work sector altitude(mm) | 370 | 300 | 245 |
| Attack number of times(min-1) | 180 | 210 | 250 |
| Malleable side steel length of side(mm) | 130×130 | 65×65 | 52×52 |
| Malleable round steel length of side(mm) | Φ145 | Φ85 | Φ68 |
| Uses for patrs the power(mm) | 15 | 7.5 | 4 |
| Electrical rotational speed(r.p.m) | 1470 | 1440 | 1440 |
| Anvil weight(kg) | 1800 | 850 | 400 |
| Gross weight(kg) | 5060 | 2800 | 1350 |
| Outlook size(mm) | 2080×1240×2350 | 1600×950×1950 | 1080×600×1389 |
