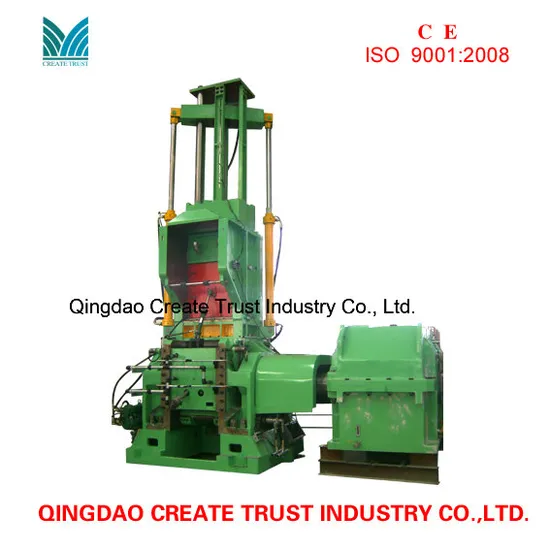

New Technical Rubber Banbury Mixer with CE&ISO9001 Certification

Product Description

Name : Rubber banbury mixer,Banbury mixer,Internal rubber mixer,Rubber internal mixer,Rubber mixer,Banbury.

Usage: It is applied to plasticizing and mixing rubber or plastic.
Advantage : High efficiency than old model, good performance ,save energy costs.
FEATURES:
The mixing chamber is forged and welded of the jacket type providing good cooling or heating effect. The working face of mixing chamber is built up by welding with carbide alloy to resist abrasion and corrosion. The rotor shaft is bored and welded with the Banbury rotor,forming the integrated construction.Water or steam can be led through the cavity to cool or heat it. The rotor wings are build up by welding with carbide alloy on the top and the two side surfaces to resist abrasion and corrosion. The hydraulic sealing that is pressurized externally is used for the end faces of rotor. The pressure is adjustable and the sealing effect is good. Operation of the discharge door is driven by the double-rack titling cylinder with the crank locking mechanism so that installation is easy. The start pressure low,the mechanical efficiency high and the operation safe and reliable. The dischange door is of the drilled-hole cooled type and the working surface is build up by welding with carbide alloy . The advanced PLC control technology and the intelligent display terminal are used for the control system.
It provides the functions of intelligent operations and information indication in Chinese characters,such as setting the control parameters to the user's requirement,
Giving appropriate prompts about the operation stemps,dynamically displaying the mixing process parameters and detecting faults and giving alarms,which improves the reliability of the control system.
Main parameters below :

Model		X(S)M- 50 X 40	X(S)M- 80 X40	X(S)M- 120X 40	X(S)M-160X40
Total Volume of mixing chamber	L	50	80	120	160
Working capacity of mixing chamber	L	30	60	90	120
Rotating speed of rear rotor	r/min	40	40	40	40
Sped ratio of rotor		1:1.172	1:1.143	1:1.15	1:1.16
Pressure of compressed air	MPa	0.6 ~ 0.8	0.6 ~ 0.8	0.6 ~ 0.8	0.6 ~ 0.8
Compressed air consume	m3/h	20	30	60	80
Pressure of cooling water	MPa	0.3 ~ 0.4	0.3 ~ 0.4	0.3 ~ 0.4	0.3 ~ 0.4
Cooling water consume	m3/h	7 ~ 10	25	27 ~ 45	35 ~ 50
Steam pressure	MPa	£0.8	0.5 ~ 0.8	0.5 ~ 0.8	0.5 ~ 0.8
Steam consume	m3/h	200	300	720	900
Power of driven motor	kw	95	210	280	450 DC
Overall dimension (L ´ W ´ H)	mm	5600X 2700 X3300	5930X2620 X3900	7400X3100 X4230	6620X2640X4300
Weight	t	14	24	28	32

Below is the draw of the use for banbury mixer:
Below is the factory who use our machine :
Service of us :
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
