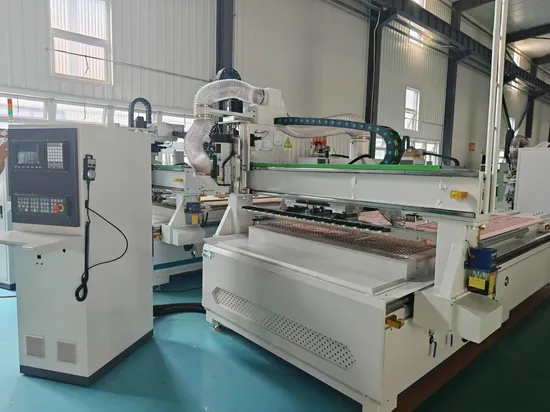

3D and 3 Axis CNC Heavy Duty CNC Router Engraving Wood Cutting and Drilling Machine
| US$20,500.00-31,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-510L
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Controller
Taiwan Syntec Controller
Spindle
9kw Hsd Spindle /Italy
Motor
Yaskawa Servo Motor / Japan
Rail
Taiwan Rail
Rack
Helical Racks
Ball Screw
High Precision
Software
Type 3 / Artcam
Table
Doulbe Layers PVC
Dust Collector
3kw with Double Bags
Name
CNC Engraving and Cutting Machine
Transport Package
Plywood Box
Specification
1500mm*3000mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
600 Sets/ Year
Product Description
CNC Woodworking Engraving and Cutting MachineSpecification
| Model | A-510L |
| Working area | 1500mm X 3000mm X 200mm |
| Table design | Double-layer PVC ( one zone) |
| Linear rail Guide | Linear guide 25mm / Taiwan |
| X-Y movement | Rack and pinion/ Taiwan |
| X-Y drive reducer | Planetary type gear reducer /Taiwan |
| Z movement | Ball screw drive/25mm/Taiwan |
| Z speed reduce | Z axis direct drive by motor |
| Spindle | ISO-30 / 9KW / Italy |
| ATC | ISO-30 / drum type / 8 positions |
| Cooling system | Heat exchanger |
| Drive motors | Delta servo motor 750W |
| Software | Be/CAM-Standard (optional) |
| Pneumatic rod | 3 Nos. Adjustable ( X: 2 Y:1 ) |
| Controls | Taiwan Syntec Controller |
| Vacuum pump | Chinese Becker Pump 5.5KW |
| software | Type 3 / ArtCAM |
| Pakcage | Plywood box |
(1) Moving bridge nesting table, belongs to economic and simple machine design.
(2) UA series is for small quantity and multi-style processing. UM series is for multi spindles quantity production.
(3) Direct and fast processing on big boards, there is no need to cut into pieces first.
(4) Automatic tool changer (A) and manual tool changer (M) are optional for complicated processing.
(5) It takes a small area, because the working table doesn't move, the tools move up and down, forward and back.
(6) Italian HSD air cooling spindle with high frequency, 9KW power, ISO-30
(7) Centralized automatic lubrication system.
(8) Automatic backlash preloading mechanism.
(9) Refrigeration and air conditioning electric control box.
(10)Italian CNC control system
(11)Tool automatic compensation system
(12) Centralized dust collection control system
Industry categories: furniture industry, advertising engraving, yacht and ship, stationery gifts, etc.
Processing materials: artificial board, plexiglass, engineering plastics, thermoplastic material, etc.
