                                        US$1,500.00
                                         |

                                            1 Piece

                                            (MOQ)

                                         |









Basic Info.





                                    Certification
                                    CE, ISO9001



                                    Item Name
                                    1t 10t 20t Metal Stainless Steel Foundry Iron Ladl



                                    Power
                                    50kg-80ton for Customatised


                                    Material
                                    Iron, Steel, Stainless Steel,


                                    Color
                                    Blue / Green / Yellow


                                    Application
                                    Casting ,Foundry, Forge,Pouring


                                    Weight
                                    Different as Per Different Model


                                    Transport Package
                                    Wooden Box or as Per Customer′s Request


                                    Specification
                                    different as per different model


                                    Trademark
                                    Nanchen or Customized



                                    Production Capacity
                                    6000PCS/Month





    Product Description

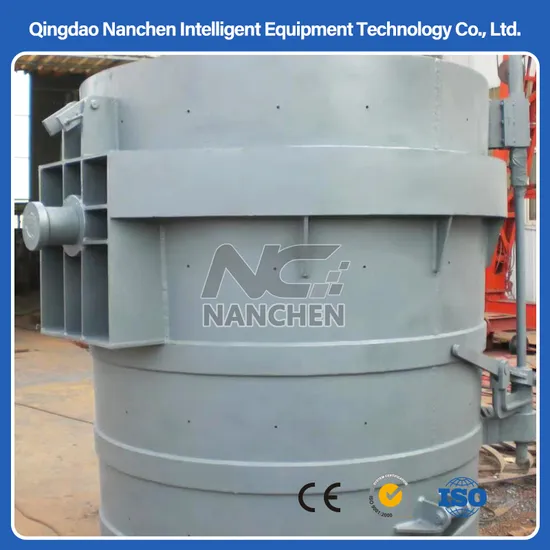

                            Foundry Steel Pouring Ladle/ Molten Iron Transfer Ladle for Casting     Company Profile
Product Description
                                   Application of Casting foundry steel ladle Hot metal ladle for foundry casting operation,after undertaking iron liquid in front of the furnace , send it to the casting model place to pour by driving car. Ladle for steel making plant, foundry in the open hearth furnace, furnace or converter molten steel, casting operation before undertaking.                 The worm gear reducer of iron ladle is used to drive the bucket to tilt, which can rotate flexibly and freely, with two-way rotation and good reversibility.
                              Capacity(t)
  |                      Ladle diameter(mm)
  |                      Ladle Height(mm)
  |                      Outside Size(mm)
  |                      Ratio
  |
                          0.3
  |                      512
  |                      540
  |                      1220*720*1385
  |                      63
  |
                          0.5
  |                      590
  |                      620
  |                      1260*815*1400
  |                      63
  |
                          0.7
  |                      675
  |                      705
  |                      1362*864*1465
  |                      63
  |
                          1.0
  |                      750
  |                      770
  |                      1425*1020*1700
  |                      63
  |
                          1.5
  |                      840
  |                      850
  |                      1532*1145*1836
  |                      69
  |
                          2.0
  |                      915
  |                      959
  |                      1648*1255*2039
  |                      69
  |
                          2.5
  |                      985
  |                      1025
  |                      1750*1346*2140
  |                      69
  |
                          3.0
  |                      1050
  |                      1088
  |                      1778*1390*2168
  |                      82
  |
                          4.0
  |                      1140
  |                      1208
  |                      2000*1520*2400
  |                      82
  |
                          5.0
  |                      1250
  |                      1260
  |                      2170*1600*2585
  |                      120
  |
                          8.0
  |                      1458
  |                      1446
  |                      2210*1818*2725
  |                      160
  |
