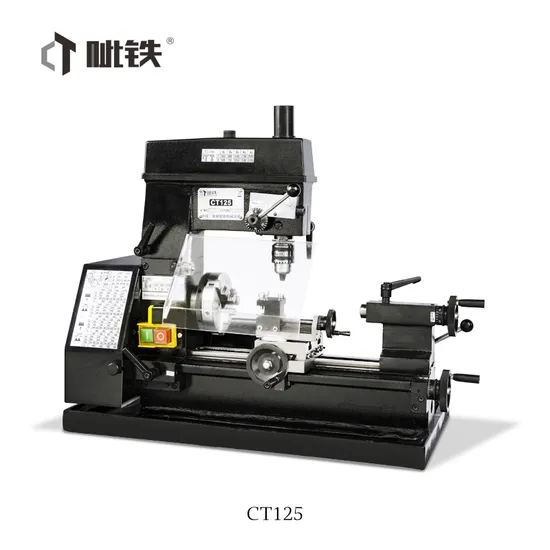

Small Combination Lathe and Milling Machine Mill Drill Combo Mini Lathe
Basic Info.
Model NO.
CT125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
410*300*520mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Turning-parameters | |
| Max. swing over bed | 125mm |
| Max. swing over tool post | 60mm |
| Max.machining length | 180mm |
| Spindle taper | MT1 |
| Spindle bore | 9mm |
| Max. travel of tail-stock sleeve | 18mm |
| Taper of tail-stock | MT1 |
| Metric thread/Grade | 0.4~1.5mm/8 |
| Inch thread/Grade | 0.0028~0.0055T.P.I/8 |
| Longitudinal feed/Grade | 0.07~0.14mm/2 |
| Spindle speed range/Grade | 560~2500r/min(5) |
| Motor power | 180w |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 6mm |
| Table size | 85x60mm |
| T-slots size | 8mm |
| Spindle travel | 40mm |
| Distance from spindle to column guide rail | 125mm |
| Distance from spindle end to table surface | 120~180mm |
| Spindle speeds | 500~2500r/min(10) |
| Rotation angle of drilling and milling box head around the column | 360° |
| Net weight/gross weight | 22KG/25KG |
| Overall dimensions | 520x300x410mm |
| Package Size | 550x300x480mm |
