Portable PVC Belt Air Cooled Hot Splicing Press for Conveyor Belt

Product Description

Portable PVC belt air cooled hot splicing press for conveyor belt

Hot Splicing Press Specifications	HK300	HK600	HK900	HK1200	HK1500	HK1800	HK2100
Effective length	305 mm	610 mm	914 mm	1219mm	1524mm	1829mm	2360mm
Effective width	130 mm	130 mm	130 mm	130mm	130mm	130mm	130mm
Weight lower part	10 kg	16 kg	20 kg	28.5KG	30KG	32KG	36kg
Weight upper part	11 kg	13 kg	18 kg	25.5KG	30KG	42KG	55kg
Weitht Bumper	/	/	/	/	/	37kg	43kg
Total weight	21 kg	30 kg	38 kg	54KG	62KG	76KG	134kg
Length	505 mm	805 mm	1105 mm	1405mm	1705mm	2005mm	2360mm
Overall Height	220 mm	225 mm	225 mm	225mm	225mm	225mm	255mm
Overall Width	250mm	250mm	250mm	250mm	250mm	255mm	255mm
Max. pressure	2Bar	2Bar	2 Bar	2bar	2bar	2bar	2bar
Max. temperature	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C
Dimensions for transport (mm)	712 x 352 x280	1012 x 352 x 280	1312 x 352 x 280	1612 x 352 x 280	1912 x 352 x 280	2212*352*300	2567*352*300
Weight for transport	26 kg	35 kg	43 kg	84KG	96KG	176KG	219KG
Power	1.6KW	2.8KW	4KW	5.2KW	6.4KW	7.6KW	8.8KW

Hot Splicing Press Features:
air cooling press
a. High automation
b. Two phase voltage
c. Pneumatic cylinders
d. Anti-interference device
e. High Frequency welding
f. High&stable output power
g. High sensitive spark arrester
h. Overcurrent Protection Device,
Hot Splicing Press have different els for width from 24″ (300 mm) to 84″ (2100 mm)

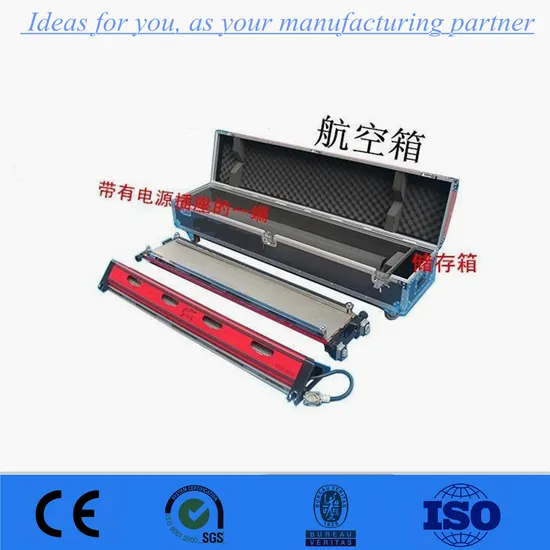

Hot Splicing Press portable HK 900 PVC belt splicing machine hot splicing press for conveyor belt
Hot Splicing Press Fast Splicing: include heating time and cooling time, no more than 12 mins.
Hot Splicing Press All in one design: The press has an integrated air-cooling system and also air compresor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or aditional air compresor.
Hot Splicing Press Easy to use and assemble, how to operate pls freely to refer to below video.
Reliable and automatic Temperature Control with time control (in one meter, also you can set by yourself). High quality Eurotherm controller.
Hot Splicing Press Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.
Voltage: 220V or 380V, if special voltage pls freely to inform us.
Hot Splicing Press Air freight
