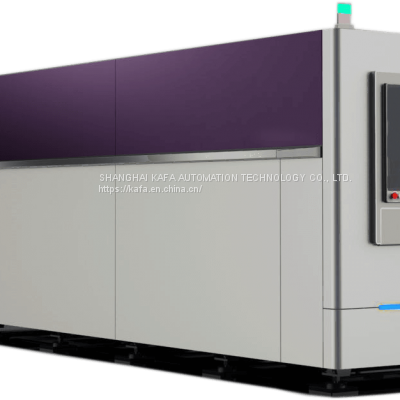

Fiber Laser Sheet Cutting Machine GEC Series

Fiber Laser Sheet Cutting Machine GEC Series

Product Details

Product Details

Product Description

Product Description
Kafa GEC Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.
Parameters:
ModelGEC Series
Working Area1500*3000mm
Laser Power500W/750W/1000W/2000W Raycus
Laser Wave Length1064nm
Working TableSaw tooth
Maximum Idle Running Speed1200mm/s
Position Accuracy±0.05mm/m
Position Speed60m/min
Minimum Line Width± 0.02mm
Cutting Thickness≤6mm
Software and Control SystemNC Editor (Optional Cypcut)
Position TypeRed DOT
Power Consumption≤12KW
Working Voltage110-220V,380V/50-60Hz
Auxiliary GasOxygen, nitrogen, air
Air Proportional ValvesFor power 1000W and higher
Working life of fiber moduleMore than 100000 hours
Fiber laser cutting headWEIHONG or Raytools
SoftwareCompatible with various formats
ComputerYes
Water cooling systemS&A industry chiller
MotorJapan Yasakawa two 850W Y motors + 850W X motor
DriverYasakawa 1000W
ReducerShimpo/ ASG From Japan
Liner guider systemTaiwan HIWIN
Rack gear transmissionYYC Precision double rack drive
Electric componentmade in France
Weight3700Kgs
Big safety coverOptional
Add Tube cutterOptional

Features:
Industrial Fiber Laser Sheet Cutting Machine with more accuracy
Suitable for variety of cutting operations with a maximum working area of 12000mm*2500mm
Active Anti-Collision Function laser heads
Zero Quivering while cutting thin sheet
Advantages of new Stretching Aluminium Crossbeam
Tenon-and-mortise Type Plate welding structure bed
Working Process & Sample
