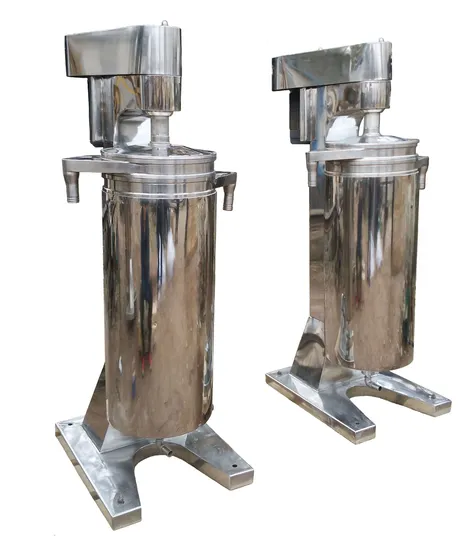

Blood Plasma Centrifuge

Product Description

Main Purposes
The blood separator is one kind of tubular separator. This machine is the improved one on the base of the original separator and through experiment again and again. This kind of machine can be extensively used in separating blood plasma and cell of pig, cow, sheep and chicken etc.
Main Features
The main feature of it is the high yield and the rate of broken blood cell can be reduced to the lowest extent. The contact part between the separator and material is made of stainless steel which can meet the requirement of GMP in medicine making industry.
Tubular separator description
Structure and principle
It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
GFLB model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
GFLB: It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro powder, extract liquid from plants, separation of plasma and cell.
Technical Parameter:

model	GF105	GF112	GF125
Bowl inner diameter(mm)	105	112	125
Bowl Effective height (mm)	730	730	730
Bowl Settling volume (L)	6	7	8
Rotary speed (r/min)	17500	16000	15500
Max separation factor	16000	15000	14700
Nozzle diameter (mm)	4/6/8	4/6/8	6/8/10
Material Inlet pressure (Mpa)	≥0.05Mpa
Motor power	2.2KW	3.0KW	3.0KW
Dimension (L*W*H) mm	600*1000*1600	600*1000*1600	600*1000*1600
Feeding capacity	450L/H	550L/H	600L/H
Machine weight	460kgs	490kgs	510kgs

User's site:
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
