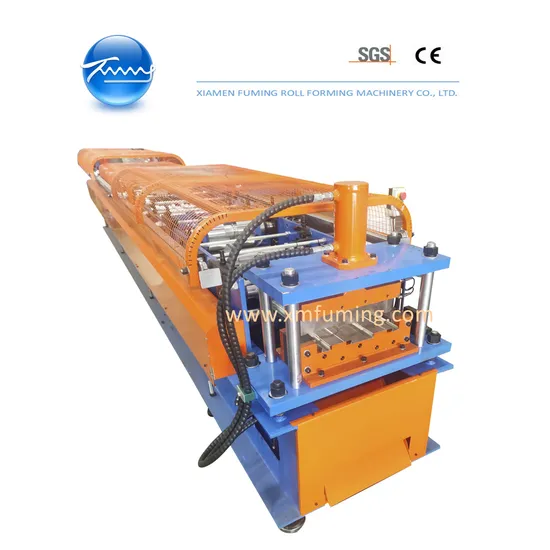

Roll Forming Machine for Yx18-329/326 Super-Span Tray Profile
| US$18,000.00-23,500.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
YX18-329/326 SUPER-SPAN TRAY
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Gear/Sprocket, Gear Box, Toroidal Worm Box
Thickness
0.8mm to 1.0mm
Feeding Width
600mm
Color
Customized
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
10sets/Month
Packaging & Delivery
Package Size
13500.00cm * 2050.00cm * 1520.00cm
Package Gross Weight
6500.000kg
Product Description
| ROLL FORMING MACHINE FOR YX18-329/326 SUPER-SPAN TRAY PROFILE | |
| Material Specification | |
| Thickness | 0.75mm to 1.0mm |
| Effective width | 326mm/329mm |
| Feeding width | 427mm/430mm |
| Material | GI |
| Yield strength | G550 |
| Machine Components | |
| 5Ton*600mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max. 1300mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 14 stages |
| Roller material | GCr15, CNC lathes, heat treatment, hard chrome coated |
| Shafts Diameter | Φ60mm |
| Size changing | Manually by spacer |
| Main motor | 5.5KW |
| Line speed of rollformer | Approx. 18m/min |
| Hydraulic Cutting Device | |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3.0KW |
| PLC Control System | |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
| Product Rack | Un-powered, 3 meters long |
