7X45X Articulated Flexible Arm Mouting Stand Stereo Zoom Microscope with Table Clamp

Product Description

Product Description

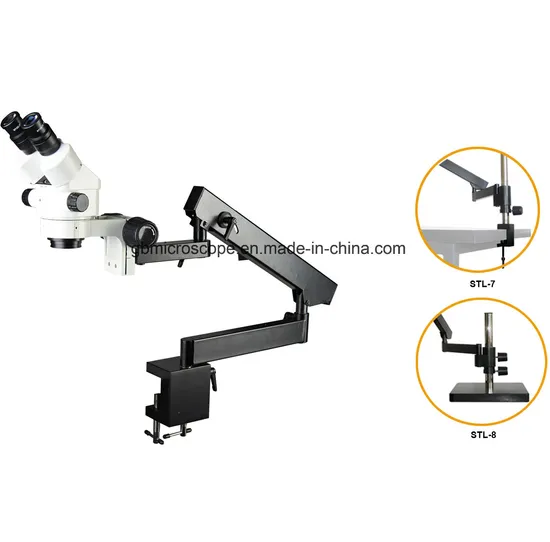

Articulated Flexible Arm Stereo Zoom Microscope: SXL7045-STL7B
Articulated arm zoom stereo microscope SXL7045-STL7 Description:
Aticulated flexible arm stereo microscope SXL7045-STL6/7/series offers our best value boom stereo microscope . It includes the upgraded and popular 0.7x-4.5x zoom stereo microscope head,extra wide viewing field, large zoom ratio and long working distance, wide scale of optional accessoreis to meet different demand. this boom stand microscope is for larger applications and can be mounted to the floor and have an added boom to act as a counterweight. These stands are used for commercial inspection applications such as soldering, circuit board inspection and repair and engraving. Expand the scope of operations, any orientation and angle observed the objectives
Technical Data:
Product Parameters
Technical Parameters:

SXL7045-STL6/7/8 series	Standard Specification	6B	7B	8B
Viewing Head	Binocular head , Inclined at 45° ,360°rotatable, interpupiillary distance : 54-75mm	√	√	√
	Trinocular head , Inclined at 45° ,360°rotatable, interpupiillary distance : 54-75mm	O	O	O
Eyepiece	Wide Field Eyepiece WF10×/20 , Diopter adjustment eyepiece	√	√	√
	WF15X, WF20X	O	O	O
Objective body	Zoom objective:0.7X-4.5X	√	√	√
	Auxiliary Objectives: 0.5X/WD165mm, 1.5X,/45mm, 2X/WD:30mm	O	O	O
Zoom ratio	1:6.4	√	√	√
Focus System	Coarse adjustment, moving range 50mm	√	√	√
Working distance	100mm	√	√	√
Flex arm stand	Fexible articulated arm with table clamp	√
	Fexible articulated arm ,post stand with table clamp		√
	Fexible artculated arm, post stand on base			√
Light source	Natural Light	√	√	√
Optional Accessories	Super Light Annular LED Lamp(60grains), Intensity Adjustable	O	O	O
	High resolution digital camera: 1.3MP, 3.0MP, 5.0MP, 9.0MP with software	O	O	O

Note: "√" Standard Specification, "o" Optional Parts
Optical Data:

Eyepiece	Standard Specifications		Auxiliary 0.5X		Auxiliary 1.5X		Auxiliary 2X
	Working Distance:100mm		Working Distance:165mm		Working Distance:45mm		Working Distance:30mm
	Magnification	FOV	Magnification	FOV	Magnification	FOV	Magnification	FOV
WF10X/20	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14X	14.3mm
	45X	4.4mm	22.5X	8.9mm	67.5X	3mm	90X	2.2mm
WF15X/15	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21X	10.7mm
	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135X	1.7mm
WF20X/10	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28X	7.1mm
	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180X	1.1mm
WF25X/9	17.5X	11.4mm	8.85x	22,8mm	26.2X	7.6mm	35X	5.7mm
	112.5X	1.86mm	56.3x	3.6mm	168.8X	1.2mm	225X	0.9mm

Detailed Photos
Versatile Optional Accessories:
Objectives WF10X, WF15X WF20X
Auxiliary Objectives 0.5X 1.5X, 2X
Super Light LED illumination High resolution COMS camara 3.0MP, 5.0MP, 9.0MP The ring illumination and digital camera easy intallation High Resolution HDMI output1080MP LCD screen integrated camera
It is easy and convenient to install it on the trinocular head microscope with CCD adapter
