15L-100lpe Plastic Jerrycan, Open Top Barrels Marking Blow Molding Machine/Blowing Machine

Product Description

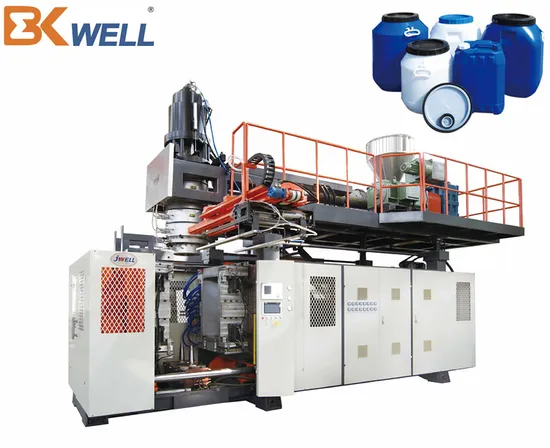

BEK-BM30/50/100Blow Molding Machine for producing 15L-100L PE Plastic jerrycan,open-topbarrels,chemical packaging products (We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Performance and advantage
·Suitable for producing 15-100L different size jerrycan,open-top
barrels and others chemical packaging products.
·Adopt high output extrusion system,single station/double station accumulating die head.
·Optional view strip line system.
·Optional hydraulic servo control system.
Product Overview:
Technical parameters of machine(single station)

Model	Unit	BM30	BM50	BM100
Max product volume	L	30	50	100
Dry cycle	PC/h	600	450	360
Die head structure	Accumulating type
Main screw diameter	Mm	80	90	100
Max plasticizing capacity (PE)	Kg/h	150	180	190
Driving motor	Kw	37	45	55
Accumulating volume	L	5.2	6.2	12.8
Oil pump motor power	Kw	15	18.5	22
Clamping force	Kn	280	400	600
Space between platen	Mm	400-900	450-1200	500-1300
Platen size W*H	Mm	740*740	880*880	1020*1000
Max. mold size	Mm	550*650	700*850	800*1200
Heating power of die head	Kw	20	28	30
Machine dimension L*W*H	M	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0
Machine weight	T	12	13.5	16
Total power	Kw	95	110	135

Technical parameters of machine(double station)

Model	Unit	BM30D	BM50D	BM100D
Max product volume	L	30	50	100
Dry cycle	PC/h	800	600	500
Die head structure	Accumulating type
Main screw diameter	Mm	90	100	120
Max plasticizing capacity (PE)	Kg/h	180	220	280
Driving motor	Kw	55	75	110
Accumulating volume	L	5.2	6.2	12.8
Oil pump motor power	Kw	18.5	22	30
Clamping force	Kn	280	400	600
Space between platen	Mm	400-900	450-1200	500-1300
Platen size W*H	Mm	740*740	880*880	1020*1000
Max. mold size	Mm	550*650	700*850	800*1200
Platen moving stroke	Mm	1400	1800	1900
Heating power of die head	Kw	20	28	30
Machine dimension L*W*H	M	5.2*8.5*3.5	5.6*9.2*3.8	6.0*10.2*4.2
Machine weight	T	16	23	25
Total power	Kw	115	145	195

Different kind of Control system of machine
Parison wall thickness control system
No1. human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 . Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
