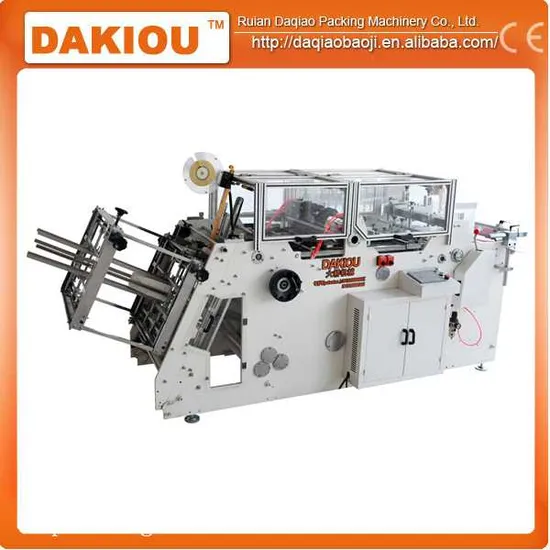

Automatic Food Box Erecting Machine

Product Description

Automatic Erecting Machine Machine Show:
( if have any questions or need more details, pls send email to confirm with us)
It is an ideal equipment to produce paper box such like hamburger box, chips box, noodle box .etc. these boxes forming use glue.


DAKIOU HBJ-D Automatic Erecting Machine Advantage:

1. Simple and firm structure, keep the machine run high quality and efficiency with low noise.
2. Plexiglass cover, safe and visible for operators.
3. Change forming molds easily to make different products, change and adjust time is very short.
4. PLC program control the whole line, available to make various food paper trays.
5. HMI(Human Machine Interaction) designed control button and panel, running more easy and safe for operators.
6. Automatic collection, stack, and counting by tape insert.
Box Type:
This machine with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit
Technical Specifications

Box length	L 100-450mm and angle: 5°-40°
Box width	100-600mm and cardboard weight: 200g/m2-600g/ m2
Edge height	H 15-200mm and corrugated paper thickness: 1.5mm
Covering area	L800 (1.2M × 4M) L1000/2 (1.5M × 4 M)
Packaging dimensions	(1) Length: 3.6M Width: 1.5M Height: 1.7M (2) Length: 3.6M Width: 1.85M Height: 1.7M
Weight	HBJ-D800 (approx 2.2 tons).HBJ-D1200(approx 2.8tons)

Workshop:
Packaging and Shipping:Our Service:
1.Spare parts guarantee for one year in machine arrival.
2.Send the technician for installation & training.
3.Offer Service Online
FAQ:
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company

2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.

3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.

4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
