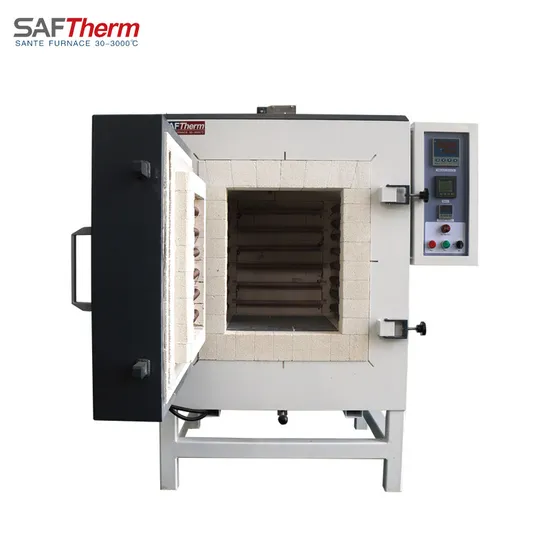

1200c Industrial Lab Box Chamber Sintering Annealing Heat Treatment Electric Muffle Furnace

Product Description

Product Description STD 1200 series industrial furnace features high quality spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Laboratory furnaces are ideal for heat treating, reacting studies, sintering processes, and ceramic firing.
Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 64 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.
Furnace operation is controlled by Shimaden (Japan) 32-segment digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money.
Mean Features
1. Front loading, auto lifting door.
2. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
3. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
4. Built-in computer interface.
5. Long life type N thermocouple.
6. CE certified
Technical Parameters

Model	STD-45-12	STD-64-12	STD-96-12	STD-288-12
Chamber Size mm(W*D*H)	150x150x150	200x300x120	250x300x250	400x400x400
Power supply	380V/12KW	380V/15KW	380V/18KW	380V/30KW
Type	Front-loading
Usage	The product is suitable for elemental analysis, measurement and small and midium sized steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units,can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
Furnace structure	The furnace is made of carbon steel with powder coating on surface, integrate furnace body and heating system and controller system in one
Max. temperature	1200°C (2192°F)
Continuous Working temperature	1100°C (2012°F)
Heating Rate	5~20ºC/min for longer life using of furnace
Heating Element	Top brand iron-aluminum alloy resistance coil wire (HRE) wear on ceramic tubes distributes in three sides of the wall
Chamber material	High quality alumina refractory bricks
Temp. Uniformity	±5°C
Thermocouple	N type Temp. Range: (0 to 1260) °C [32 to 2300] °F
Temperature Controller	1. Shimaden SRS13A(Japan) with 4 programs and 32 segments 2.Simultaneous LED display of actual temperature VS set point 3.PID automatic control and auto-tune function 4.+/- 1 ºC temperature accuracy Control system integrated in furnace base, defined application within the constraints of the operating instructions
Electronic component	SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. 3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Certification	ISO9001 CE
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively

Detail Pictures
