Lab Scale Closed Masticating Machine for Rubber and Plastic Testing

Product Description

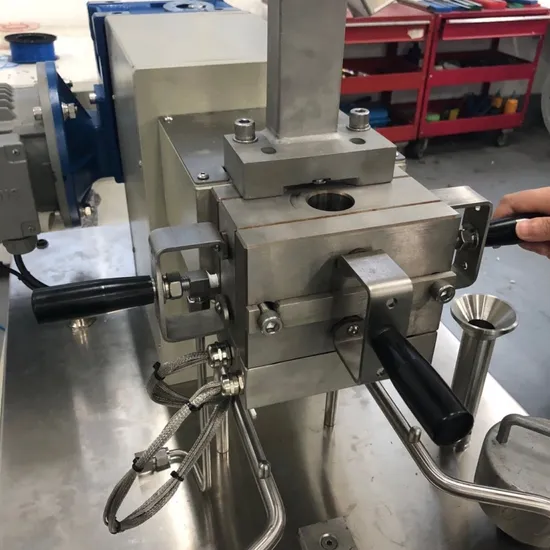

About Lab Banbury Mixer
*Applicable for mixing of general-purpose plastics, PVC, and rubber elastomers.
*The rotor is made of high-quality tool steel, chrome-plated, and mirror-polished, with a Rockwell hardness above 60.
*Driven by a servo motor.
*Automatic material pressing device.
*Siemens TFT touchscreen and Siemens PLC centralized control system, highly intelligent and easy to operate.
*Mechanical and electrical dual safety protection, meeting CE safety standards.
*Formula storage.
Technical Parameters

Model	HTK-55	HTK-200	HTK-300
Mixing Chamber Volume	55ml	200ml	300ml
Rotor Speed	0~200rpm	0~200rpm	0~200rpm
Rotor Speed Ratio	2:3	2:3	2:3
Rotor Type	Roller , Banbury, Cam, Sigma	Roller , Banbury, Cam, Sigma	Roller , Banbury, Cam, Sigma
Temp. Control Accuracy	±1.0ºC	±1.0ºC	±1.0ºC
Heating / Cooling Method	Electrical heating / Compressed air cooling	Electrical heating / Compressed air cooling	Electrical heating / Compressed air cooling
Drive Power	3kW	5.5kW	7.5kW
Total Power	4.5kW	6kW	8kW
Weight	200kg	320kg	380kg
DimensionL×W×H	1250×690×1350mm	1350×690×1350	1480×690×1350

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
