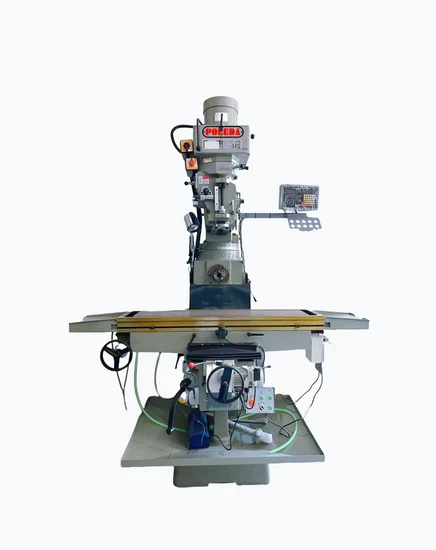

High Quality and High Performance 6hv Universal Vertical Horizontal Turret Milling Machine

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Variable Spindle Axis Direction: This dual-purpose milling marvel is engineered to alter its spindle axis direction to meet diverse processing demands. By offering adaptability to various machining scenarios, it elevates processing efficiency to unprecedented levels, ensuring precision and excellence in every task.
Powerful: With its versatile spindle axis, our vertical and horizontal dual-purpose milling machine stands out with its exceptional power and broad applicability. It skillfully processes workpiece surfaces at myriad angles relative to the horizontal plane, catering to an extensive array of machining requirements with unmatched functionality.
Strong Adaptability: The vertical and horizontal dual-purpose milling machine is crafted to tackle an array of complex processing tasks effortlessly. Whether the need is for plane processing, surface intricacies, or specialized angle machining, this machine adapts effortlessly by adjusting the spindle axis direction, showcasing remarkable flexibility.
Improve Production Efficiency: Seamlessly transitioning the spindle axis direction, this innovative milling machine masters the art of multi-surface processing with a single setup. This efficiency marvel slashes repositioning time, dramatically boosting production efficiency and streamlining workflows for optimal output.
Easy Operation: Despite its powerful capabilities, the vertical and horizontal milling machine assures simple and intuitive user interaction. With effortless mode switching between vertical and horizontal, users can seamlessly adapt to various processing needs, ensuring a user-friendly experience without compromising on functionality.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
First, the Bed Structure
The bed of this cutting-edge milling machine showcases a robust double-column structure, guaranteeing exceptional strength, rigidity, and precision stability. With an integral sliding bed supporting the table and spindle, it excels in minimizing vibration and noise, ensuring a smooth, accurate, and serene machining process.
Second, Workbench Structure
A pivotal component, the workbench of this milling machine, secures the workpiece for precision machining. Meticulously designed with a T-slot, it facilitates effortless clamping and movement in both horizontal and vertical planes. Its rotatable feature enhances versatility, enabling seamless bevel machining with precision.
Three, the Main Spindle Structure
Equipped with either a vertical or horizontal structure, the spindle of this machine features a tool clamping system with a chuck or tool handle. Boasting high speed and torque, it meets diverse machining needs. Integrated with a cooling system, it efficiently cools tools and workpieces, ensuring optimal performance.
Four, Feed System
The feed system, a crucial part of the milling machine, comprises a feed shaft, servo motor, and guide rail. It governs tool movement, both horizontally and vertically, to accommodate various machining processes. The servo motor ensures precise feed control, while the guide rail guarantees system stability and accuracy.
Fifth, Structural Advantages
This vertical and horizontal milling machine boasts a compact structure, powerful functionality, and broad application range. With high precision and automation, it facilitates efficient processing, reducing manual operation while saving valuable time and costs, making it a cornerstone for advanced manufacturing.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
