Advanced Double Wall Paper Cup Manufacturing Machine for Europe

Product Description

YB-WT70
------Quotation: YB-WT70 Double Wall Paper Cup Machine FOB Ningbo. ------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external ------Delivery time: 30 days after receive the payment of deposit ------Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance ------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer ------Installation: we will send 1 technicians for machine's installation and debugging according to customer's requirement; the technician's board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD100.For each technician/one day, estimate 5-7 working days ------Guarantee period: Guarantee period is 12 months after getting the machine ------The supplier shall provide the service:(after pay the machine) ------the supplier to send adjustment of installation and commissioning ------the supplier direct buyer's technical personnel operating the machine ------The buyer shall provide the facilities and preparations:(Delivery machine to finish) ------foundation and adapter power supply water and compressed air pipe and related projects
Brief Description

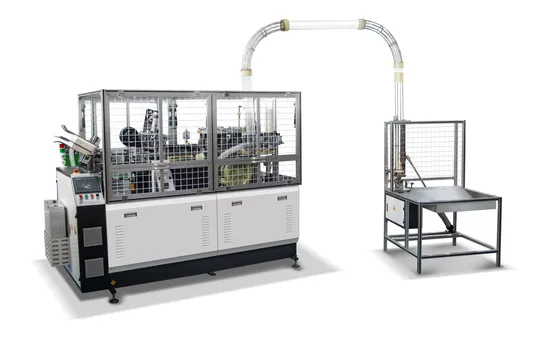

YB-WT70 high-speed double wall paper cup forming machine is a multi-station high speed paper cup making equipment, mainly utilized for making the outer-sleeve of paper cups and paper bowls. The paper cup former is installed with a frequency converter, forming and sealing equipment and other devices, thereby realizing a huge output.
Samples
Main Technical Specification

Paper Cup Specification	4-12oz (mold exchangeable)
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	70-90pcs/min
Power Source	380V 50HZ 3Phases
Average Power	5KW glue box 3.8KW
Air Supply Requirement	Air pressure:0.4 Mpa Air out-put:0.6cbm/min
Total Weight	1700KG
Package Size	(L*W*H): 2350*960*1700mm
