MODLE : VM-1320NC
CNC Planer Vertical Milling Machine,Automatically measure, Automatically remove chips.

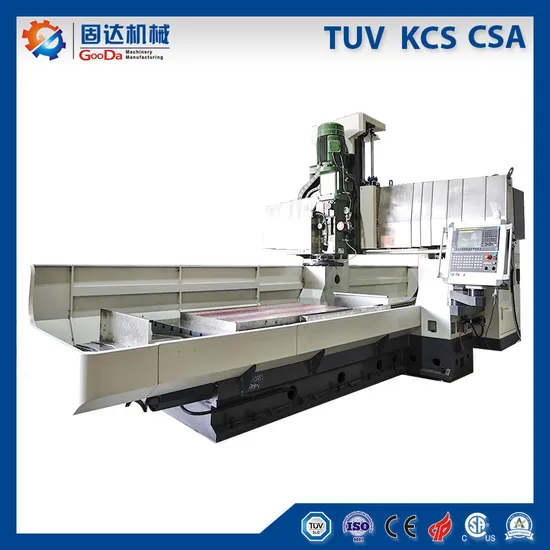

CNC GANTRY MILLING MACHINE

GOODA CNC GANTRY MILLING MACHINE VM-1320NC is mainly heavy milling surface machine. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Features and applications: Automatically measure, automatically processing and excellent surface performance. Maintain high accuracy for dimension, squareness and parallelism. One loading and one setting needed only is helpful to shorten the preparation time. Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface. Machine base with chip removal groove
Detailed Photos
VM-1320NC fine and rough integrated vertical double-head milling machine
Double column split structure, excellent rigidity
High-power gear head for rough milling, ultra-precision belt spindle for fine milling
Super powerful small grid electric permanent magnet table, the killer of "Mahjong material"
Fine rough milling cutter, the cutter is saved by 50%, milling instead of grinding!
Manufacturing capacity

Specification
Separate Cutters - one for Rough milling, one for Finish milling

Item: CNC Gantry Milling Machine		Unit	Model
			VM-1320NC
Cutting Capacity	Control Axis	No.	4
	Maximum length	mm	2000
	Maximum width	mm	1300
	Maximum height	mm	400
	Column width	mm	1350
Worktable	Table size	mm	2000*1000
	Max loading weight	mm	6000
	T-slot size	mm	22*150*6
Gear Spindle (Rough milling)	Spindle power	kw	15
	Spindle taper	-	BT50
	Spindle speed	rmp	50-800
	Cutter diameter	mm	80
Belt Spindle (Finish milling )	Spindle power	Kw	11
	Spindle taper	-	BT50
	Spindle speed	rmp	50-500
	Cutter diameter	mm	250
Feed	X feed speed	mm/min	8000
	Y feed speed	mm/min	8000
	Z feed speed	mm/min	8000
	X/Y/Z Motor	Kw	3/3/3
Others	Machine height	mm	2854
	Machine weight	kg	12000
	Space	m	5.5*2.9
CNC system		-	FANUC SYSTEM OR Mitsubishi controller OR Siemens System

VM-1320NC Main part
Sort	Name	Quantity	Origin	Remark
Machinery	Ball screw	3	TBI/TaiwanTPI/HIWIN	steady transmission,High accuracy, wear-proof
	Electric permanent magnet sucker		Thales	Famous brand
	The milling head	1	Taiwan	Famous brand, high quality
	Bearing	1	TPI Taiwan TPI	famous brand, High accuracy, High quality
	Lubricating oil pump	1	Baoteng	Famous brand, high precision, high quality
Electrical appliances	NC system	1	Taiwan JK	Taiwan famous brand,High accuracy
	Servo motor	3	Japan Yaskawa	orld famous brand, high precision
	Electrical components	1	French Schnrider	Famous brand, steady property

You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.

Certifications
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!

Packaging & Shipping
Packing and shippingTo be packed in fumigation wooden case or in steel box,suitable for long distance ocean transportation,well protected against moisture and shocks,pressure wetness.
Company Profile
{Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
Let GOODA help you keeping quality at 100%!

{ EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer

FAQ
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.

The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
We offer the super six-sided pre-squaring on mold steel plate preparation, producing a milled, squared and chamfered plate ready for production without costly and destructive grinding.
2. After sale service, we will help you at once when there is a problem. besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.
