Digital Portable Leeb Metal Hardness Tester for Metal Testing Machine

Product Description

Guangzhou Amittari instruments Co., LTD.
specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tension meter, sound level meter, anemometer, force gauge etc..

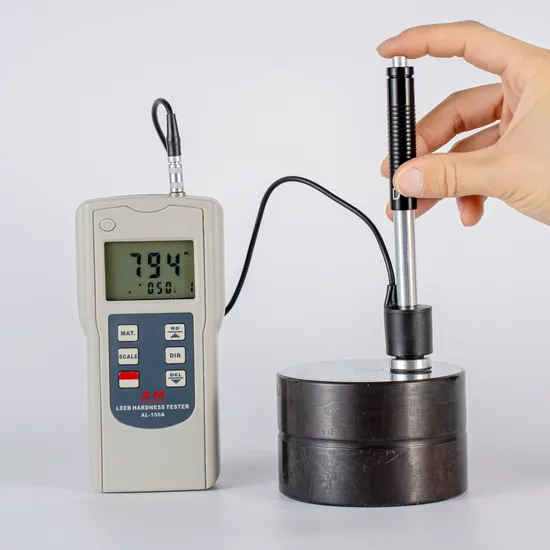

Digital Portable Leeb Hardness Tester for Metal testing machine AL-150A Product Description

The Leeb Hardness Tester applicable for failure analysis of installed machinery or permanent parts of assembled systems, die cavity of molds, heavy work pieces, pressure vessel, steam generator and other equipment, testing surface of a small hollow space, inspection of bearing and other mass produced parts on a production line ,material identification in the warehouse of metallic materials and rapid testing in large range and multi-measuring areas for large-scale work piece.Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.

Product Feature
* Transform between HL/HRC/HRB/HB/HV/HS.
* Store the latest 250 groups measurements.
* Select measured material and way by key.
* Can show measurements repeatedly to remove the large errors.

* Use USB data output with connection PC.
* Provide Bluetooth data output choice.

Product Parameters

Accuracy	Display error ±0.8% at LD=900
Measuring Range	200~900 HLD
Measurable Material	9 different common materials
Operating Temperature	-10°C~50°C
Storage Temperature	-30°C~60°C
Relative Humidity	≤90%
Size	140x70x30 mm
Power Supply	2x1.5vAAA Um-4 Battery
Weight	130 g (Not including batteries)

Product Accessories

Standard Accessories	Main Unit
	Standard Test Block
	Measurement Sensor
	Small Support Ring
	Cleaning Brush
	Carrying Case
	Operation Manual
Optional Accessories	Impact Body
	Support Ring
	USB data output
	RS-232 data output
	Bluetooth™ data output

Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ). As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
