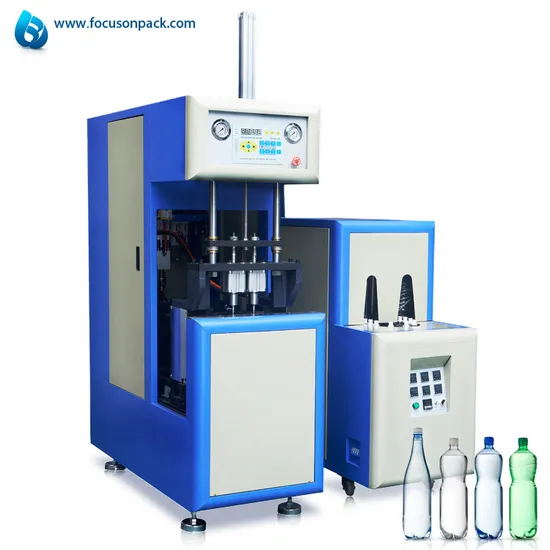

PP Stretch Blow Moulding Machine Bottle Plastic Machine Molding Blowing
| US$1,400.00-7,800.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
SMB-2-880S
Max Length
360mm
Max Diameter
180mm
Name
PP Stretch Blow Moulding Machine Bottle Plastic Ma
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008
Transport Package
Export Wooden Case
Trademark
bowei
Origin
Wenzhou
HS Code
84774090
Production Capacity
700-1000PCS/Hr
Product Description
PP Stretch Blow Moulding Machine Bottle Plastic Machine Molding Blowing| TECHNICAL DATA | ||
| ITEM | MEASURE-MENT | SBM-880 |
| Material | / | PET/PP |
| Volume | L | 0.05-2.0(2-cav)3-5(1-cav) |
| Theoritical output | Pcs/h | 700-1000 |
| Max.length | MM | 360 |
| Max.diameter | MM | 180 |
| Max.mould plate dimension(l*h) | MM | 420*500 |
| Clamping force | KN | 180 |
| Power | KW | 12 |
| Voltage/Frequency | V/HZ | 220~380/50~60 |
| Machine dimension(l*w*h) | M | 1.66*0.74*2.2 |
| Machine weight | Kg | 700 |
| Pre-heater dimension(l*w*h) | M | 1.46*0.71*1.58 |
| Pre-heater weight | Kg | 300 |
| MAIN PARTS BRAND | |||
| ITEM | Name of the main spare parts | BRAND NAME | COUNTRY |
| 1. | Closing cylinder | FESTO | GERMAN |
| 2. | Sealing cylinder | FESTO | GERMAN |
| 3. | Stretching cylinder | FESTO | GERMAN |
| 4. | Closing magnetic valve | FESTO | GERMAN |
| 5. | Stretching magnetic valve | FESTO | GERMAN |
| 6. | Blowing magnetic valve | FESTO | GERMAN |
| 7. | Moving magnetic valve | SIEMENS | GERMAN |
| 8. | Voltage regulator | CHINA | |
| 9. | Computer controller | BOTHFIT | TAIWAN JOINT |
| 10. | Infrared lamp | CHINA | |
| 11. | Open circuit controller(32) | DELEX | CHINA |
| 12. | Heat continue controller | DELEX | CHINA |
| APPLICATION |
| This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples. |
| FEATURES | |
| 1 | Original FESTO air cylinder. |
| 2 | Minimize your initial investment by starting small. |
| 3 | Add additional systems economically as your business grows. |
| 4 | Bottles of different sizes can be produced simultaneously to meet your exact requirements. |
| 5 | Change over from one size to another can be completed simply and quickly. |
| 6 | The tooling costs (molds) are low since the design of the system is simple. |
| 7 | Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design. |
| 8 | Maintenance costs are kept to a minimum and highly-trained personnel are not required |
| HOW IT WORKS | |
| 1. | The Blow Molding system does not require highly trained operators to produce consistent quality bottles. |
| 2. | The bottle making process starts by loading preforms into the preheater. |
| 3. | The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance. |
| 4. | When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. |
| 5. | After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use. |
| FAQ | |
| 1 | What is the terms of payment ? |
| We accept L/C ,40% dawn payment balance pay before shipment by T/T | |
| 2 | What is your delivery time? |
| Normally we will delivery the goods in 15-30 working days . | |
| 3 | Warranty time ? |
| One year. | |
| 4 | How you ship the machine? |
| We will send by sea,as the machine dimension is large we do not suggest you send by air ,but if you need urgently ,send by air we can also do it . | |
| 5 | Any easy broken parts free of charge,when we place order? |
| Yes . | |
