High Quality Reverse Osmosis Plant Water Treatment Machine Purification System

Product Description

Product Description

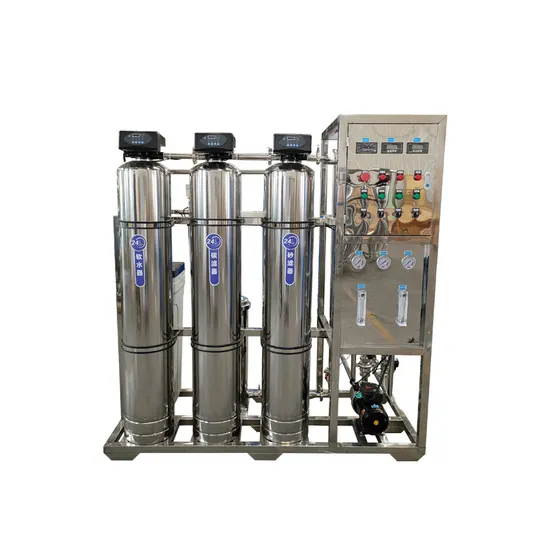

Reverse osmosis water treatment machine
Reverse osmosis (RO) is a kind of membrane separation process driven by pressure gradient. It can effectively remove dissolved salt colloids and organic matters in water like molecular filter. The reverse osmosis process is the reverse process of natural osmosis. In order to produce reverse osmosis process, it is necessary to use water pump to exert pressure on saline solution to overcome its natural osmotic pressure, so as to make water pass through the reverse osmosis membrane; At the same time, in orderto prevent salt impurities in raw water from focusing on the membrane surface, concentrated water should continuously wash the membrane surface during operation, and take the impurities from the concentrated water and membrane surface to realize the whole process of reverse osmosis desalination and purification.

Model	Capacity (Liters/hour)	General Power(KW)	Membrane(Pic)	Size (L*W*H)(mm)	Weight(Kg)
RO-250	250	1.65	4040*1	1400*600*1600	150
RO-500	500	1.65	4040*2	1400*600*1600	250
RO-1000	1000	2.05	4040*4	1600*800*1800	500
RO-1500	1500	4.4	4040*6	2700*800*1600	600
RO-2000	2000	4.4	4040*8	2700*800*1600	700
RO-2500	2500	4.5	4040*10	2500*600*1600	800

Product Advantage
Reasons to choose us1.greatly reduce sub branch expenses. 2.stable operation and reliable quality 3.can be used to monitor the water quality
4.automatic circulation cleaning system 5.Automatic control and supervision
Detail drawing of water treatment equipmentThe specifications on standard model and the customization options: (The customized options needs extra cost than standard model) Please contact with 500 / 1000 / 1500 / 2000 LPH Pure mineral Drinking water RO Reverse Osmosis purifying treatment machine / system for online chat to get the cost if you are interested in;

RO Plant-0.25T
Control	Automatic	Voltage	AC 220V/380V
Quartz Filter	250*1400mm	Quartz Weight	50KGS
Activated Carbon Filter	250*1400mm	Activated Carbon Weight	20KGS
Membrane Brand	custom made	Precision Filter	custom made
Raw Water Pump	CHL4-40	High Pressure Pump	CDL2-15
Machine Size(L*W*H)	custom made

RO Plant-1T
Control	Automatic	Voltage	AC 220V/380V
Quartz Filter	350*1650mm	Quartz Weight	200KGS
Activated Carbon Filter	350*1650mm	Activated Carbon Weight	60KGS
Membrane Brand	custom made	Precision Filter	custom made
Raw Water Pump	CHL4-40	High Press Pump	CDL2-15
Machine Size(L*W*H)	custom made

There are other spare parts like Level controller for water tank, Central tube, Up and below distribution, control valves, meters and electrical components available if you need
shop productsWe also can supply other device to build a complete water purification plant if you need:Water storage tank for raw water and pure water(PE, SUS304, aseptic); UV sterilizer; Ozone sterilizer; mineral material dosing device;
Product Details
Introduction of important parts and components of the productEach machine is equipped with a pressure troubleshooting table as standard, which can observe the operation of each stage of the filter device through the pressure difference, and can more quickly find the problem and realize the remote maintenance/troubleshootingFully automatic control valveAfter setting the time, automatic operation and regeneration cleaning function, saving time and effort Three-tank device1. High-quality quartz sand: (its main function is to further remove the flocculated pollutants in the water, and it achieves the purpose of water purification through the retention, sedimentation and adsorption of the filter material),2. High-quality resin: The resin absorbs calcium and magnesium in water by ion exchange, and has the effect of softening water quality.
3. High-quality activated carbon: It can adsorb a small amount of insoluble impurities remaining in the water. It can adsorb most of the soluble impurities. It can adsorb the peculiar smell in the water. It can adsorb the color in the water and make the water transparent and clear. Certifications & Our team
FAQ
1.What is Reverse Osmosis (RO)?
Reverse Osmosis (RO) Purifying water through pressure-driven separation. reverse osmosis (RO) is a pressure-driven separation process that employs a semipermeable membrane and the principles of cross flow filtration.Reverse osmosis water treatment provides the finest level of filtration. The RO membrane acts as a barrier to all salts and inorganic molecules, as well as organic molecules with a molecular weight greater than approximately 100 It is therefore a highly effective process for removing contaminants.
2.What is 5 Stages RO Water System?First stage Pre-treatment.(Sand filter) Second stage Pre-treatment (Carbon filter) Third stage Pretreatment (Resin softener)Fourth stage Pretreatment (Micron filter) Fifth stage (RO system)
3.Application fields of water treatment
1.Pure water, mineral water. (Bottled water, Barrel water)
2.Water for food and beverage production. (Ice maker)
3.Water for chemical industry, electronic industry, such as Hotel, Schools, Hospital, Restaurant, Boiler, Factory.
4.Water for medical use, high purity water for electronics industry.
4.Our advantages
1. Rate of desalination up to 98%~99%2. Pure water obtaining rate is up to 75%
3. Continuously purifying water for 24 hours
4. PLC control automatic flushing function.
5. Low operating cost and long life span.
5: Is this machine easy to install?
This machine is very easy for install. The machine you received is assembled. You will only need to follow steps on our English instruction and video.
