Continuous Operating Large Capacity Avacado Olive Oil Tricanter Centrifuge for Fruit Oil Extractor with CE Certification

Product Description

Product Description
Continuous Operating Large Capacity Avacado Olive Oil Tricanter Centrifuge for Fruit Oil Extractor With CE PROCESSING AVOCADO OIL USING THE SENZ TRICANTER® AND SEPARATOR
The Tricanter® separates the avocado pulp into the fruit pulp, oil and water phases. Then, the separator purifies the oil phase and removes ultrafine impurities. This process is gentle to the product and is appropriate for producing the highest grade of avocado oil. Processing with SENZ SeparationTechnology results in a high oil yield and clear avocado oil.In other words: in highest possible yield and customer satisfaction.
Structure Diagram of 3-Phase Decanter Centrifuge
LWS520 Olive Oil Filtering Decanter Centrifuges is designed specially for olive oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin olive oil. 2 Phase decanter centrifuge is designed for olive oil extraction to avoid waste water pollution issues. 3 Phase decanter centrifuge is designed for olive oil extraction to get more drier olive pomace.

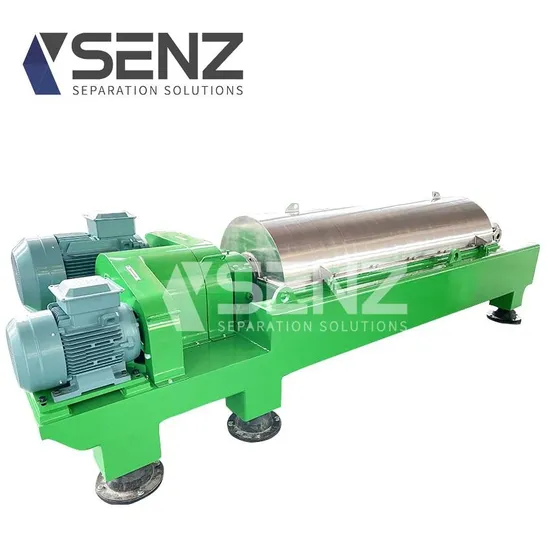

LWS Series Decanter Centrifuge(3-Phase)
It is used for dehydration, concentration, clarification, and solid particle separation of materials with density differences between solid and liquid.

Three-Phase Centrifuge Operating Principle
The centrifuge starts to rotate at full speed, and the slurry is added to the spiral inner cylinder through the feed pipe and then øows into the drum. Under the action of centrifugal force, the solid slag with a higher density settles on the drum wall, and is pushed towards the small end of the drum by the spiral conveyor and discharged from the slag outlet.

Oil and water form a concentric ring, and the light phase liquid (oil) overflows from the light phase liquid outlet, while the heavy phase liquid (water) øows into the pump chamber at the large end of the drum and is discharged by the centrifugal pump pressure. The thickness of different liquid rings is adjusted by the variable centripetal pump wheel.
Centripetal Pump
Centripetal pumps can be made of 304, 316L materials, or other materials.

There are 2 types of centripetal pumps: adjustable and non adjustable. The adjustable type can achieve non-stop adjustment of the depth of the drum liquid pool, and the centrifugal pump pressure discharge method is more suitable for situations where liquid is prone to volatilization.
Application
1. Food
A: flesh processing,aquatic products process and edible protein recovery;
B: Extract plant protein from soybean,oily seeds and leguminous plants;
C: Recovery of brewing leach liquor malt and yeast
D: Treatment and recovery of wine lees liquid;
E: Extract of instant coffee and tea;
F: Clarification of palm oil,olive oil and seed oil;
G: Extract juice from fruits ,berries and vegetables;
H: Recovery of refined pectin;
I: Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A: Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B: Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C: Intermediate products and final products of organic chemistry industry;
D: Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E: Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F: Treatment of spent wash and molasses fermentation residues;
G: Extraction of starch from wheat,corn ,cassava and potato;
H:Waste liquid recovery and recycling from above industries. Product Presentation
The parameters of separation performance

Product Name	3-Phase Decanter centrifuge
Material	SS304/316L Duplex
Drum Diameter	420mm
Voltage	380v/customized
Max Speed	3000 r/min
Separator factor	2620g
Capacity	25 m3/h
Weight	2500 kgs
Product Dimension	3320x1700x1130mm
HS Code	8421192000

Model	Diameter	Length	Max Speed (R/Min)	L/D Ratio	G-Force (G)	Capacity	Main Motor Power	Weight	Dimension (L*W*H)
	(Mm)	(Mm)				(M3/H)	(Kw)	(Kg)	(Mm)
LWS355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LWS355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LWS420*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LWS500*2000	500	2000	2500	4	1750	5-35	45	4000	3520*1800*1170
LWS520*2080	520	2080	3200	4	3154	3-35	55	5000	4510*1410*1170
LWS550*2000	550	2000	2800	4	2414	6-40	55	5700	4570*1380*1600
LWS650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LWS650*2600	650	2600	2000	4	1456	6-65	90	6000	5490-1510*1720

Best Service for you1) 7day*24hours Hot-line & Email Service.2) Your inquiry related to our products or prices will be replied in 24hours.3) Well-trained and experienced staffs to answer all your questions in fluent English.4) Abundant spare parts in stock are available to provide.5) Our technicians could be dispatched for overseas service.6) Your workers could get trained in our factory.
Service Commitment
1. We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

Drum The drum is cast by Duplex 304 stainless steel in centrifugal casting, the forging process is adopted , which can enhance its corrosion resistance, The replaceable alloy sleeve is installed in the solid state outlet, so that the mother material of the drum's outlet is not worn, and the wear-resistant bar is installed in the drum to make the drum inside not worn.
Differential The differential drives the screw discharger and makes it rotate at a constant speed of the external drum. The speed difference between the external drum and the screw discharger is determined by the reduction ratio of the differentialand the speed of the external drum. PLC Control Panel The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency, rotation speed, differential speed and current of operating major and auxiliary electrical engine. Eletrical Components: SIEMENS/S-chneider/ABB Cemented carbide and wear sleeve Imported Bearling-NSK Imported Bearing-SKF
Sucessful Project Material Choice According to users' requirement,the product contact parts can be made of austenite stainless steel (321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials
Below is Sewage treatment plant in Russia.
Certificate Company Profile Jinhua Shenzhou Centrifuge has been developing and manufacturing centrifuges for more than 40 years, and is one of the Chinese leading manufacturer. Shenzhou Centrifuge has more experience and expertise than any other separator manufacturer when it comes to applying and using decanter centrifuge for the purpose of continuous separation. Main production: LW series decanter centrifuge, SZ series sludge dewatering press, LWS three-phase centrifuge, centrifugal dehydrator, integrated sludge thickening and dewatering machine. The company has a quality assurance system and after-sales service assurance system. It is a technical enterprise integrating scientific research, design, manufacturing, sales and service. At present, the equipment is exported to 70 countries, including the United States, Canada, Australia, Russia, Brazil and Singapore.
Packing&Shipping Our Customers
FAQ Q1: Where can I get product & price information?A1: Send us inquiry or email directly, then we will contact you.Q2: How can I make sure your machinery is suitable for me?A2: Please tell all the separation information you know, such as your raw liquid, two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.Q3: What should I do if I want to see the separation effect?A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.Q4: How to enjoy the OEM services?A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
