Dynamic Focusing Fiber UV CO2 Laser Cutting Machine 20W 30W 50W 60W 100W with Factory Price

Product Description

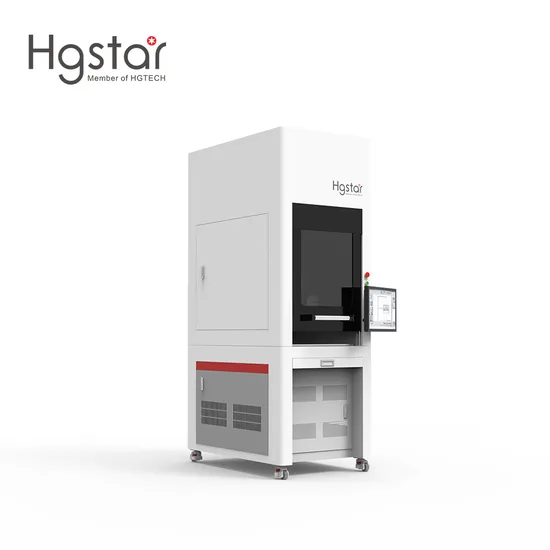

Smart HMF Series CO2/UV/Fiber Laser Marking Machine
Product Description
1.Fiber laser marking machine adopts high-speed sweep depiction oscillator, wavelength optical focus field mirror, stability good, fast speed.
2.Integrated design, small volume, low power consumption long life, high efficiency, maintenance-free, no consumables. Air-cooled cooling, fiber laser theoretical life 100,000 hours of light.
3.Can be marked with text graphics, two-dimensional code, regular flow No., portrait picture, etc.
Working field :
·The field lens determines the laser marking area.
· We have different lens sizes : 70x70mm, 110x110mm, 150x150mm, 175x175mm, 200x200mm, 220x220mm, 300x300mm.
· Small field lens have short focal length with high precision and stronger laser energy, more suitable for deep engraving and cutting.
Product Parameters

Machine name	Smart HMF Series Fiber/CO2/UV Laser Marking Machine
Laser source	JPT (RAYCUS or MAX or IPG)
Laser power	3W 5W 10W 20W 30W 50W 60W 70W 100W (optional)
Laser wavelength	1064nm
Marking depth	0~2.0 mm (Depends on metal material and Marking time)
Marking speed	8000mm/s
Marking minimum character	0.1x0.1mm
Repeatability accuracy	±0.02 mm
Marking content	text, logo,pattern, date, bar code,pictures etc
Control software	EZCAD 2 lite (support Windows computer)
Software Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc.
Machine unit power	≤500W
Machine cooling type	Air cooling
Machine power supply	AC110V 60HZ AC220V 50HZ
Machine weight	40~45KG
Machine warranty	36 months

Application
Laser marking machine for a variety of materials, It has a very wide range of applications. (such as jewelry, gold, silver, copper, aluminum, stainless steel, carbon steel, alloy, titanium, aluminum), mark on some plastic (such as ABS, PVC).
· metal plastic surface marking
· metal deep engraving and drilling
· metal surface cleaning
· metal thin sheet cutting
APPLICATION AREA
Our Advantages
>>>Enterprise advantages: with 10,000 square meters + production center and modernoffice service center, won the national high-tech enterprise, provincial "specialized andspecial new" enterprise, provincial "Gazelle" enterprise,AAA credit, ISO9001 quality systemcertification, EU National CE certification and many other honors and qualifications, excel-lent brand image, good business credit and professional service team.
>>>Technical advantages: relying on a high-quality elite R&D team to build an indepen-dent innovation R&D center, a large number of core and key technologies with extensivecompetitive advantages have been accumulated, with 8 invention patents, more than 20utility model patents and more than 20 software copyrights, and always maintain laser Thedominant position in the industry, continuous creation of high-quality products, combinedwith product design and sample preparation, engineering services and large-scale high-ef-ficiency, low-cost and high-quality manufacturing advantages, provide customers with themost competitive full set of laser equipment accessories products.
>>>Service advantages: Provide global delivery sales services, ensure that the goods aredelivered to the location designated by the customer in "appropriate, timely, appropriate,and appropriate" quantities, and cooperate with customers to achieve the goal of havingthe goods in stock when they are not needed, and zero inventory when the goods are notneeded. After Sales Service
1.One year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery. Company Profile
HGTECH Co.,Ltd is one of the largest laser equipment manufacturers in China.(Stock code: 000988)
HGstar has now established a flawless market service system. More than 40 offices are spread across major metropolitan areas in order to get closer to users and expand services.hgstar is a subsidiary of hgtech
We provide you with professional and timely services to fully meet your production needs by relying on forward-thinking process research, a full range of product systems, efficient delivery response, and a perfect after-sales system.
R&D and pilot test base: It has an R&D and pilot test base in China of more than 60,000 square meters, and six regional technology centers provide professional and timely process services.
Production base: a smart manufacturing production base of more than 100,000 square meters in China, open 24 hours a day, 365 days a year to meet batch delivery demand.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
