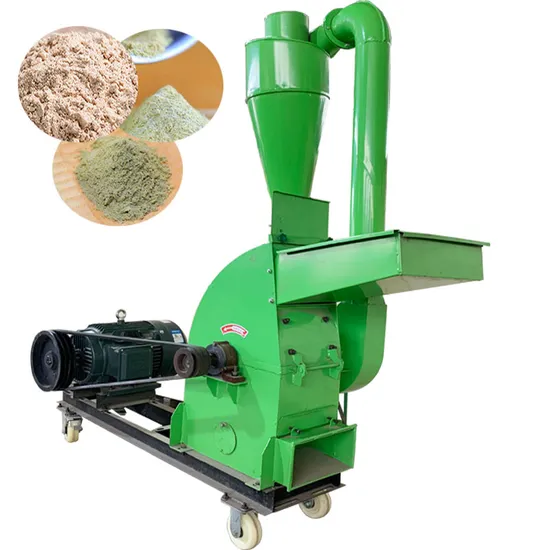

Electric Chicken Feed Corn Wheat Grinder Maize Grain Grinder Mill for Poultry

Product Description

Electric Diesel Chicken Feed Corn Wheat Flour Spice Grinder Maize Grain Grinder Mill for Poultry Feed
Application:
1.The all purpose home mini flour making machine is mainly for independent use, but can also be used in small flour mill plant. The grains that can be processed are oat, almond, potato, yam, chili, pepper, sorghum, cassava, bean, maizeetc.
It is widely used and easy operating. Even can be used for rice, electric wheat flour mill milling machine. It is a basic, but high efficient equipment. It is compact in structure. It has the advantage of low energy-consumption, low noise, good performance and high efficiency.
2.The fineness of final products depands on the size of the screen mesh!
Specification of Screen Mesh Size: 0.2mm, 0.4mm, 0.6mm, 0.8mm, 1mm, 1.5mm, 2mm, 4mm, 6mm, 8mm, 10mm.
Work Principle:
When feed crusher work, the raw materials will be fed to crushing room through the feeder, under the impact/crash of high speed rotating hammers, the raw materials will be crushed rapidly, then go through the screen and be sucked to the outlet. The size of screen can be customized as requirements.
Features: This hammer crusher adopts special steel, by full use of the chamber working principle, Divided the precondition of negative load too much. One electrical motor to driven the discharging parts, then with another fan power motor. It can solve the problem of large discharge blocking, can fully improve work efficiency, the hammer use 65 manganese steel, with wear-resisting. The machine could be driven by the diesel or motor. It is equipped with high carbon steel blade and works with high efficiency. Widely used in swine farm, wood factory, etc.
Advantages:
1. Building in rotor, grind the raw material with no dead angle, finished products more even.
2. Operate button can be moved fully, it is easy to be operated.
3. In-built sealed avoid dust spill out, keep the working environment tidy and clean.
4. May carry on the ordinary grinding, also may carry on the thin grinding and the micro grinding. Thus it has been widely used in the raw material grinding of the large and medium scale feed factory, alcohol plant, food products factory and so on.
Technical information:

Model	Power	Weight	Machine size(mm)	Output kg/h
9FQ-280	2.2KW	35KG	320*450*680	100-200
9FQ-320	3KW	50KG	350*550*850	150-300
9FQ-360	4KW	60KG	400*550*850	200-300
9FQ-400	7.5KW	160KG	700*650*1050	300-800
9FQ-420	11KW	180KG	780*700*1100	400-1000
9FQ-500	15KW	200KG	900*850*1250	500-1500
9FQ-600	22KW	500KG	1350*950*1550	1000-2000
9FQ-700	30KW	735KG	1450*1050*1650	1500-3000
9FQ-800	30KW	1220KG	1750*1350*1800	3000-5000
9FQ-900	55-75kw	15000KG	1950*1550*1950	4000-8000
9FQ-1000	75-90kw	22000KG	2250*1750*2050	5000-12000

Our service:

Pre-sale	Product selection: Supply professional drawing and lists Win-win cooperation: 1. Sign the contract 2. Establish mutual benefit, strategic cooperative partnership.
In-sale	Design evaluation: Design of process and equipment layout Installation: 1. Quality and quantity guaranteed 2. Completion of hand over Acceptance: Acceptance test Technical training: 1.On-site installation and products training 2. Operation skills training 3.Maintenance training 4. Centralized technical training.
After-sale	Technical service: Long time technical service Master device: Free supply during warranty period. Accessories supplying: Supplying spare parts with cost.

1, What is your raw material?
About the different material, we have the different machine for you.
If wood material such as the wood logs, wood chips, big wood branch, we suggest you our wood crusher machine; if be the small wood branch, wood chips, grass, stalk, animal feed grain( soybean, maize, etc), bamboo, rice husk, biomass waste etc., our hammer mill is the most suitable one.
2, What capacity do you need?(kg/h)
According to your raw material and also the capacity, we can give you the exact and detailed quotation of the machine.

3, What's size of the final product do you need?(mm)
As our this machine is composed of the hammers and screen. The screen can be changed as per your final material size requirement, such as 1-10mm. So we need to know the final material size.
It can also match with feed pellet machine line:
